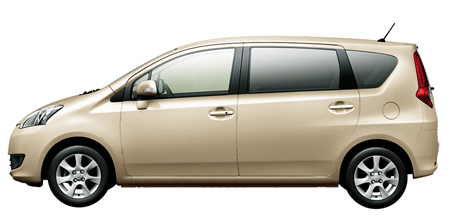

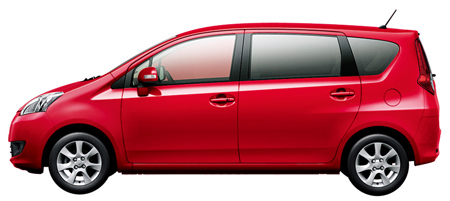

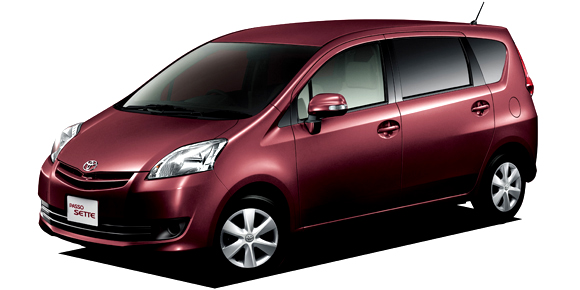

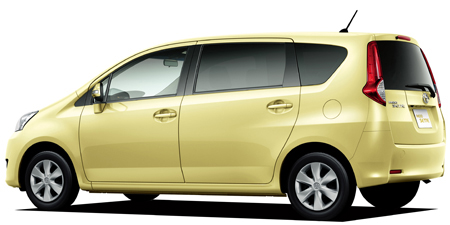

TOYOTA PASSO SETTE G

TOYOTA PASSO SETTE

M502E · G

Description

Modification: G
Chassis ID: M502E
Dates releasing: 2008.12~
Base price, ¥: CBA-M502E
Body size: 4180x1695x1620
Interior (LxWxH): 2550x1415x1310
Wheelbase: 2750
Track f/r: 1475mm/1465mm
Full weight, kg: 1190
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ◯
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 3SZ-VE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 72.0x91.8
Engine size, cc: 1495
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 14.4kg m(141N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/55R15 82V
Rear wheel: 185/55R15 82V
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.730	1.526	1.000	0.696	—	—	—	—	2.290

Available colors

black / black micawhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Silver metallicRed / Super Red VBlueDark cyanPearl / White Pearl Crystal ShineGold / Other Gold
