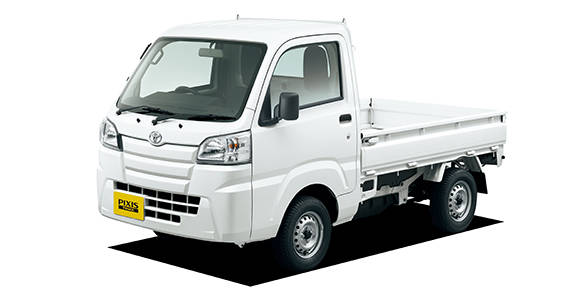

TOYOTA PIXIS TRUCK EXTRA

TOYOTA PIXIS TRUCK

S510U · EXTRA

Description

Modification: EXTRA
Chassis ID: S510U
Dates releasing: 2016.10~
Base price, ¥: EBD-S510U
Body size: 3395x1475x1780
Interior (LxWxH): ----x----x----
Wheelbase: 1900
Track f/r: 1305mm/1300mm
Full weight, kg: 810
Body type: Kei truck
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: 採用
EBD: ◯
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: KF
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 63.0x70.4
Engine size, cc: 658
Compression ratio: 11.3
Fuel injection: EFI(電子制御 type 燃料供給装置)
Max power, hp/rpm: 53ps(39kW)/7200rpm
Max torque, Nm/rpm: 6.1kg m(60N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 38 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: L型ロアアーム& McPherson Strut type Coil spring
Rear suspension: Axle リーフスプリング
Front brake: disk
Rear brake: Drum
Front wheel: 145R12LT
Rear wheel: 145R12LT
Min turn diameter, m: 3.6

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.730	1.526	1.000	0.696	—	—	—	—	2.290

Available colors

black / Black mica metallicwhitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshesYellowYellow-green / Other Yellow-greenBlack (P) / Other Black (P)Magenta / Light rose-metallicSilver / Bright silver metallicRedBlue / Other BlueDark cyanPearlGold / Other Gold
