JDM Vehicle Catalog

Vehicle Specs

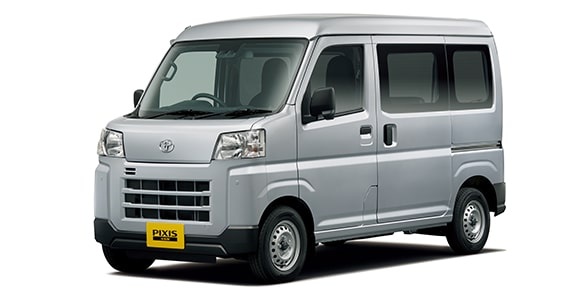

TOYOTA PIXIS VAN SPECIAL

TOYOTA PIXIS VAN

S710M · SPECIAL

Description

Modification: SPECIAL
Chassis ID: S710M
Dates releasing: 2024.11~
Base price, ¥: 3BD-S710M
Body size: 3395x1475x1890
Interior (LxWxH): ----x----x----
Wheelbase: 2450
Track f/r: 1305mm/1300mm
Full weight, kg: 950
Body type: Kei-cab van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: VSC

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO

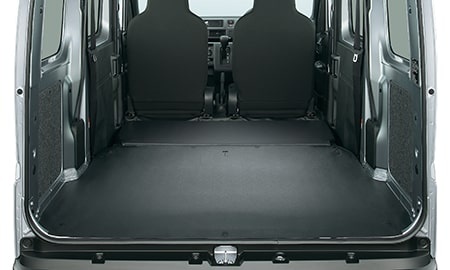

Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: KF
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 63.0x70.4
Engine size, cc: 658
Compression ratio: ----
Fuel injection: EFI
Max power, hp/rpm: 53ps(39kW)/7200rpm
Max torque, Nm/rpm: 6.1kg m(60N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 38 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 145/80R12
Rear wheel: 145/80R12
Min turn diameter, m: 4.2

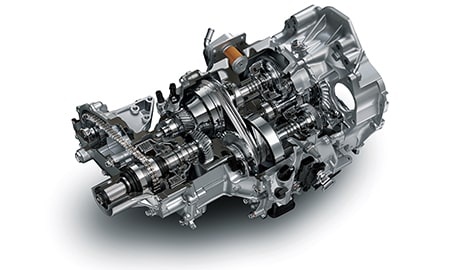

Gearbox

Number of stages: CVT

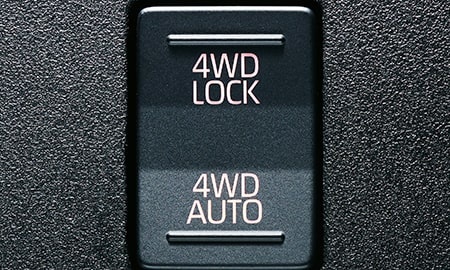

Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
4.380~0.826	—	—	—	—	—	—	—	—	4.083

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Bright silver metallicRedBlueDark cyanPearlGold
