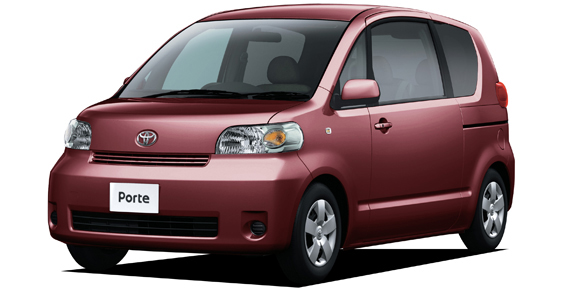

TOYOTA PORTE 130I HID SELECTION

TOYOTA PORTE

NNP10 · 130I HID SELECTION

Description

Modification: 130I HID SELECTION
Chassis ID: NNP10
Dates releasing: 2009.6~
Base price, ¥: CBA-NNP10
Body size: 3990x1690x1720
Interior (LxWxH): 2145x1370x1390
Wheelbase: 2600
Track f/r: 1470mm/1445mm
Full weight, kg: 1090
Body type: MV 1Box
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2NZ-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 75.0x73.5
Engine size, cc: 1298
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 87ps(64kW)/6000rpm
Max torque, Nm/rpm: 12.3kg m(121N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/70R14
Rear wheel: 175/70R14
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.875	1.568	1.000	0.697	—	—	—	—	2.300

Available colors

black / black micawhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-green / Light green metallicBlack (P) / Other Black (P)MagentaSilver / Silver metallicRed / Super Red VBlueDark cyanPearl / White Pearl Crystal ShineGold / Beige Metallic
