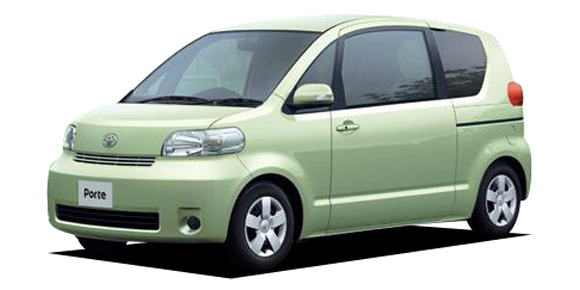

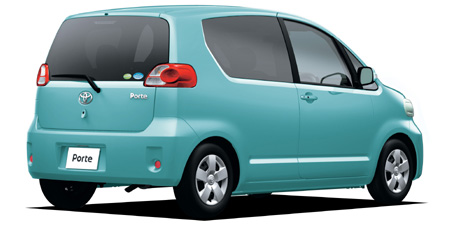

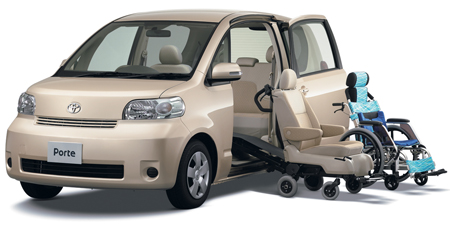

TOYOTA PORTE 150I

TOYOTA PORTE

NNP15 · 150I

Description

Modification: 150I
Chassis ID: NNP15
Dates releasing: 2007.6~
Base price, ¥: CBA-NNP15
Body size: 3990x1690x1720
Interior (LxWxH): 2145x1370x1335
Wheelbase: 2600
Track f/r: 1465mm/1430mm
Full weight, kg: 1200
Body type: MV 1Box
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1NZ-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 75.0x84.7
Engine size, cc: 1496
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 105ps(77kW)/6000rpm
Max torque, Nm/rpm: 14.1kg m(138N m)/4200rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: トレーリング Axle Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/70R14
Rear wheel: 175/70R14
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.847	1.552	1.000	0.700	—	—	—	—	2.343

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-green / Light green metallicBlack (P) / Other Black (P)MagentaSilver / Silver metallicRed / Super Red VBlueDark cyanPearl / White Pearl Crystal ShineGold / Beige Metallic
