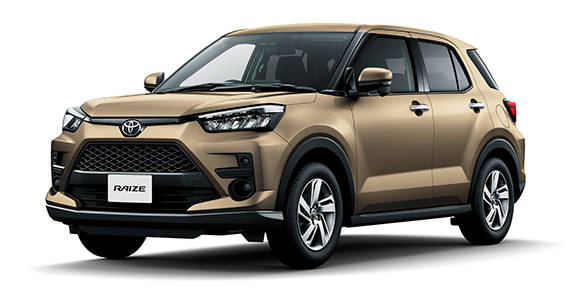

TOYOTA RAIZE G

TOYOTA RAIZE

A210A · G

Description

Modification: G
Chassis ID: A210A
Dates releasing: 2019.11~
Base price, ¥: 5BA-A210A
Body size: 3995x1695x1620
Interior (LxWxH): 1955x1420x1250
Wheelbase: 2525
Track f/r: 1475mm/1470mm
Full weight, kg: 1040
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1KR-VET
Type: inline 3 cylinder IC-turbo
Bore x stroke, mm: 71.0x83.9
Engine size, cc: 996
Compression ratio: ----
Fuel injection: EFI
Max power, hp/rpm: 98ps(72kW)/6000rpm
Max torque, Nm/rpm: 14.3kg m(140N m)/2400~4000rpm
Supercharger: IC turbo
Fuel tank, liters: 36 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/65R16
Rear wheel: 195/65R16
Min turn diameter, m: 4.9

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

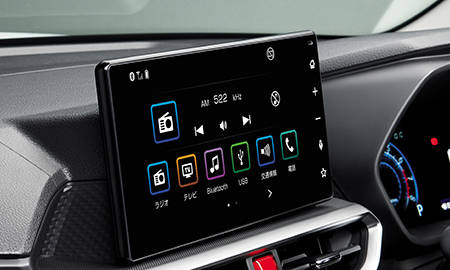

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.800~0.425	—	—	—	—	—	—	—	—	4.784~2.145

Available colors

black / Black mica metallicwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Bright silver metallicRed / Fire Quartz Red MetallicBlue / Other BlueDark cyanPearl / Other PearlGold / Other Gold
