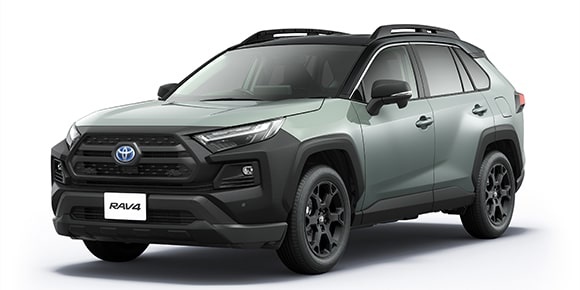

TOYOTA RAV4 ADVENTURE OFFROAD PACKAGE II

TOYOTA RAV4

MXAA54 · ADVENTURE OFFROAD PACKAGE II

Description

Modification: ADVENTURE OFFROAD PACKAGE II
Chassis ID: MXAA54
Dates releasing: 2024.12~
Base price, ¥: 6BA-MXAA54
Body size: 4610x1865x1735
Interior (LxWxH): 1890x1515x1230
Wheelbase: 2690
Track f/r: 1600mm/1620mm
Full weight, kg: 1620
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: M20A-FKS
Type: inline 4 cylinder
Bore x stroke, mm: 80.5x97.6
Engine size, cc: 1986
Compression ratio: ----
Fuel injection: 筒内直接+ポート燃料噴射装置(D-4S)
Max power, hp/rpm: 171ps(126kW)/6600rpm
Max torque, Nm/rpm: 21.1kg m(207N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/60R18
Rear wheel: 225/60R18
Min turn diameter, m: 5.5

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

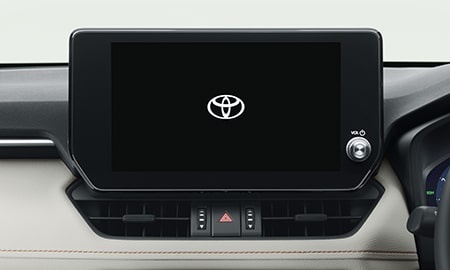

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.236~0.447	3.377	—	—	—	—	—	—	—	3.136

Available colors

black / Other blackwhite / Super White IIgreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
