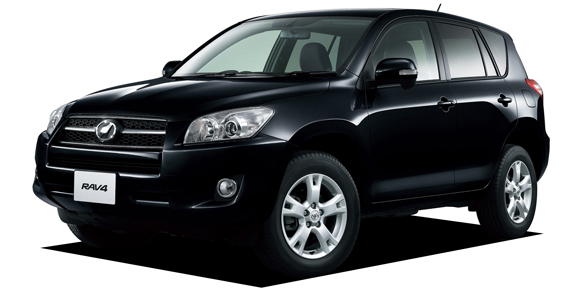

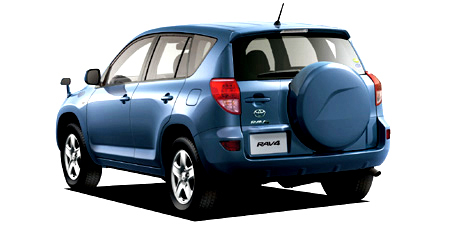

TOYOTA RAV4 STYLE

TOYOTA RAV4

ACA36W · STYLE

Description

Modification: STYLE
Chassis ID: ACA36W
Dates releasing: 2008.9~
Base price, ¥: DBA-ACA36W
Body size: 4335x1815x1685
Interior (LxWxH): 1820x1495x1240
Wheelbase: 2560
Track f/r: 1560mm/1560mm
Full weight, kg: 1460
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard

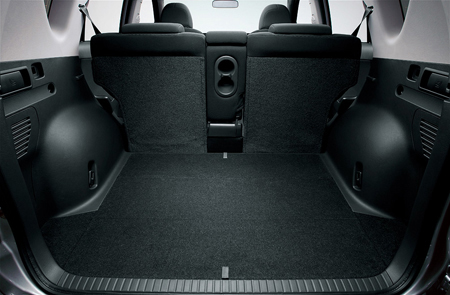

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

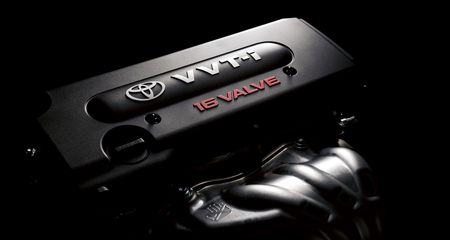

Engine

Model: 2AZ-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 88.5x96.0
Engine size, cc: 2362
Compression ratio: 9.8
Fuel injection: EFI
Max power, hp/rpm: 170ps(125kW)/6000rpm
Max torque, Nm/rpm: 22.8kg m(224N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring (stabilizer attaching)
Rear suspension: Double wishbone type Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/65R17
Rear wheel: 225/65R17
Min turn diameter, m: 5.1

Gearbox

Number of stages: CVT
Drive: FF
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.396~0.428	—	—	—	—	—	—	—	—	1.668

Available colors

blackwhitegreen / Dark green micaMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Red mica metallicBlue / Other BlueDark cyanPearl / White Pearl Crystal ShineGold / Beige Metallic
