JDM Vehicle Catalog

Vehicle Specs

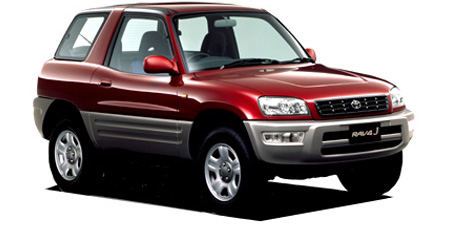

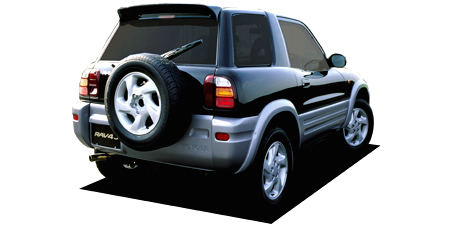

TOYOTA RAV4J J E VERSION

TOYOTA RAV4J

SXA10G · J E VERSION

Description

Modification: J E VERSION
Chassis ID: SXA10G
Dates releasing: 1997.9~
Base price, ¥: E-SXA10G
Body size: 3705x1695x1655
Interior (LxWxH): 1645x1435x1195
Wheelbase: 2200
Track f/r: 1460mm/1465mm
Full weight, kg: 1230
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ◯
Central switch: ◯
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 3S-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86x86
Engine size, cc: 1998
Compression ratio: 9.5
Fuel injection: EFI
Max power, hp/rpm: 135ps(99kW)/6000rpm
Max torque, Nm/rpm: 18.5kg m(181.4N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 58 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 215/70R16
Rear wheel: 215/70R16
Min turn diameter, m: 5.0

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.810	1.549	1.000	0.734	—	—	—	—	2.296

Available colors

blackwhitegreen / Dark green mica metallicMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Blue mica metallicDark cyanPearlGold
