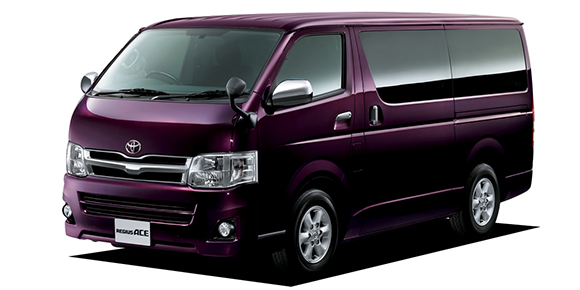

TOYOTA REGIUS ACE VAN SUPER GL PRIME SELECTION

TOYOTA REGIUS ACE VAN

KDH211K · SUPER GL PRIME SELECTION

Description

Modification: SUPER GL PRIME SELECTION
Chassis ID: KDH211K
Dates releasing: 2012.11~
Base price, ¥: LDF-KDH211K
Body size: 4840x1880x2105
Interior (LxWxH): ----x----x----
Wheelbase: 2570
Track f/r: 1655mm/1650mm
Full weight, kg: 2000
Body type: Cab-over van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1KD-FTV
Type: water cooling inline 4 cylinder DOHCIC-turbo (Diesel)
Bore x stroke, mm: 96.0x103.0
Engine size, cc: 2982
Compression ratio: 15.0
Fuel injection: コモンレール type 燃料噴射システム
Max power, hp/rpm: 144ps(106kW)/3400rpm
Max torque, Nm/rpm: 30.6kg m(300N m)/1200~3200rpm
Supercharger: IC turbo
Fuel tank, liters: 70 l
Fuel: Diesel
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type トーションバースプリング
Rear suspension: Axle 半楕円板ばね
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/80R15 107/105L LT
Rear wheel: 195/80R15 107/105L LT
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.531	1.000	0.705	—	—	—	—	2.393

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
