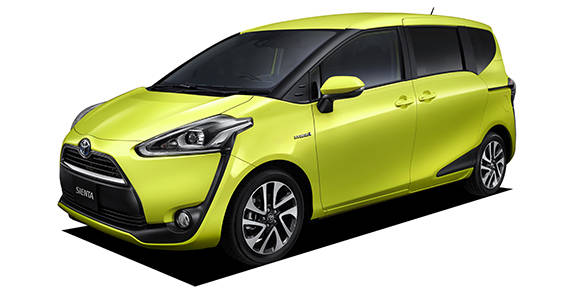

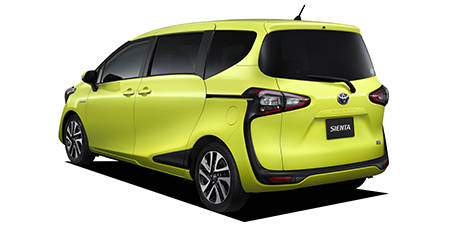

TOYOTA SIENTA HYBRID G

TOYOTA SIENTA

NHP170G · HYBRID G

Description

Modification: HYBRID G
Chassis ID: NHP170G
Dates releasing: 2015.7~
Base price, ¥: DAA-NHP170G
Body size: 4235x1695x1675
Interior (LxWxH): 2535x1470x1280
Wheelbase: 2750
Track f/r: 1480mm/1480mm
Full weight, kg: 1380
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1NZ-FXE
Type: inline 4 cylinder DOHC+
Bore x stroke, mm: 75.0x84.7
Engine size, cc: 1496
Compression ratio: 13.4
Fuel injection: EFI
Max power, hp/rpm: 74ps(54kW)/4800rpm
Max torque, Nm/rpm: 11.3kg m(111N m)/3600~4400rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/60R15
Rear wheel: 185/60R15
Min turn diameter, m: 5.2

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ✓
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / black mica / Other blackwhitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Red mica metallicBlue / Other BlueDark cyanPearl / Other PearlGold
