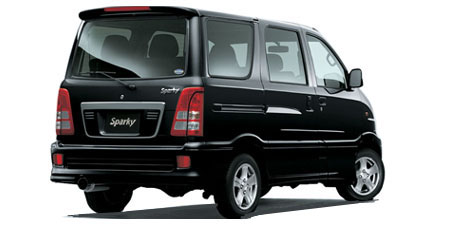

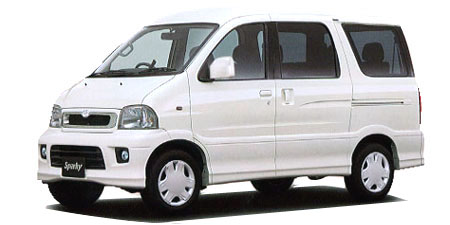

TOYOTA SPARKY X

TOYOTA SPARKY

S231E · X

Description

Modification: X
Chassis ID: S231E
Dates releasing: 2002.6~
Base price, ¥: LA-S231E
Body size: 3765x1515x1895
Interior (LxWxH): 2585x1310x1265
Wheelbase: 2430
Track f/r: 1300mm/1310mm
Full weight, kg: 1130
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: 衝撃感知安全システム

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K3-VE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 72.0x79.7
Engine size, cc: 1297
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 92ps(68kW)/6000rpm
Max torque, Nm/rpm: 12.7kg m(125N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 46 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: トレーリングリンク Axle Coil spring (トーコン&#124
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65R14 82S
Rear wheel: 175/65R14 82S
Min turn diameter, m: 4.4

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Black MetallicwhitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Pearl white IGold / Champagne metallic
