Vehicle Specs

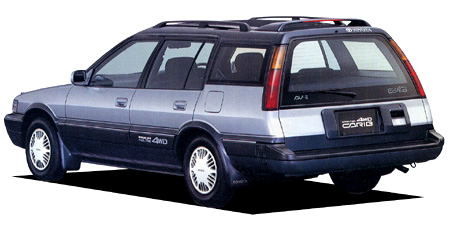

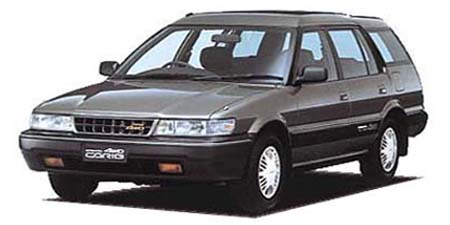

TOYOTA SPRINTER CARIB RV SPECIAL

TOYOTA SPRINTER CARIB

AE95G · RV SPECIAL

Description

Modification: RV SPECIAL
Chassis ID: AE95G
Dates releasing: 1990.8~
Base price, ¥: E-AE95G
Body size: 4380x1655x1450
Interior (LxWxH): 1780x1380x1200
Wheelbase: 2430
Track f/r: 1440mm/1380mm
Full weight, kg: 1160
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ◯
Central switch: ◯
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4A-FHE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 81.0x77.0
Engine size, cc: 1587
Compression ratio: 9.5
Fuel injection: EFI S
Max power, hp/rpm: 110ps(81kW)/6000rpm
Max torque, Nm/rpm: 14.5kg m(142.2N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring スタビライザー付
Rear suspension: トレーリングリンク Axle Coil spring スタビラ&#1245
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/70R13 85S
Rear wheel: 185/70R13 85S
Min turn diameter, m: 4.9

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.833	2.045	1.333	0.918	0.775	—	—	—	3.583

Available colors

black / Other blackwhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
