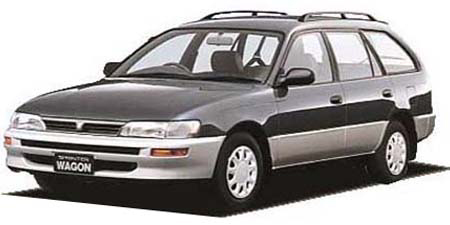

TOYOTA SPRINTER WAGON L

TOYOTA SPRINTER WAGON

EE104G · L

Description

Modification: L
Chassis ID: EE104G
Dates releasing: 1994.1~
Base price, ¥: E-EE104G
Body size: 4265x1685x1435
Interior (LxWxH): 1640x1415x1180
Wheelbase: 2465
Track f/r: 1470mm/1450mm
Full weight, kg: 990
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ◯
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 5E-FE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 74.0x87.0
Engine size, cc: 1496
Compression ratio: 9.4
Fuel injection: EFI
Max power, hp/rpm: 97ps(71kW)/6200rpm
Max torque, Nm/rpm: 12.7kg m(124.5N m)/3000rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: 半楕円リーフスプリング
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 155SR13
Rear wheel: 155SR13
Min turn diameter, m: 4.8

Gearbox

Number of stages: 3AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.810	1.549	1.000	—	—	—	—	—	2.296

Available colors

blackwhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshes / Dark bluish gray metallicYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyan / Other Dark cyanPearlGold
