JDM Vehicle Catalog

Vehicle Specs

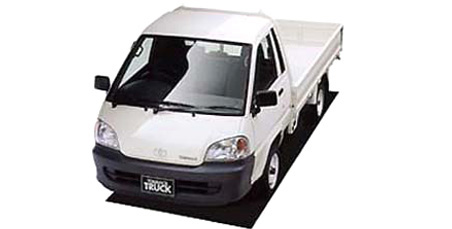

TOYOTA TOWNACE TRUCK DX

TOYOTA TOWNACE TRUCK

CM70 · DX

Description

Modification: DX
Chassis ID: CM70
Dates releasing: 1999.6~
Base price, ¥: KJ-CM70
Body size: 4380x1690x1820
Interior (LxWxH): ----x----x----
Wheelbase: 2085
Track f/r: 1450mm/1365mm
Full weight, kg: 1190
Body type: Truck
Doors / seats: 2 door / 3

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ◯
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: ×
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 3C-E
Type: inline 4 cylinder OHC (Diesel)
Bore x stroke, mm: 86.0x94.0
Engine size, cc: 2184
Compression ratio: 23
Fuel injection: 分配型(電子制御 type 燃料噴射ポンプ)
Max power, hp/rpm: 79ps(58kW)/4400rpm
Max torque, Nm/rpm: 15.0kg m(147N m)/2400rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Diesel
Fuel consumption, l/100km: 7.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone torsion bar spring
Rear suspension: 半楕円リーフスプリング
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165R13-6PRLT
Rear wheel: 165R13-8PRLT
Min turn diameter, m: 4.3

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.450	1.450	1.000	0.688	—	—	—	—	2.222

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
