JDM Vehicle Catalog

Vehicle Specs

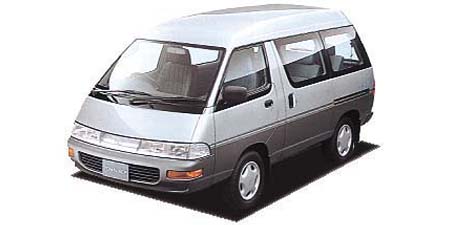

TOYOTA TOWNACE WAGON SUPER EXTRA

TOYOTA TOWNACE WAGON

CR31G · SUPER EXTRA

Description

Modification: SUPER EXTRA
Chassis ID: CR31G
Dates releasing: 1993.8~
Base price, ¥: Y-CR31G
Body size: 4395x1685x1985
Interior (LxWxH): 3025x1555x1350
Wheelbase: 2235
Track f/r: 1425mm/1395mm
Full weight, kg: 1670
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 3C-T
Type: water cooling inline 4 cylinder OHCturbo (Diesel)
Bore x stroke, mm: 86.0x94.0
Engine size, cc: 2184
Compression ratio: 22.0
Fuel injection: ボッシュ type 分配型燃料噴射ポンプ
Max power, hp/rpm: 88ps(65kW)/4000rpm
Max torque, Nm/rpm: 19.2kg m(188.3N m)/1800rpm
Supercharger: Turbo
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone torsion bar spring
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 205/70R14 94S
Rear wheel: 205/70R14 94S
Min turn diameter, m: 4.9

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.704	2.020	1.368	1.000	0.802	—	—	—	4.472

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
