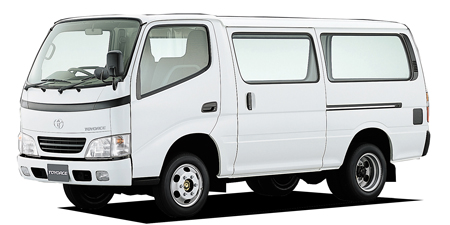

TOYOTA TOYOACE ROOT VAN BASE GRADE

TOYOTA TOYOACE ROOT VAN

XZU508V · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: XZU508V
Dates releasing: 2010.3~
Base price, ¥: BDG-XZU508V
Body size: 4690x1695x1980
Interior (LxWxH): ----x----x----
Wheelbase: 2555
Track f/r: 1405mm/1255mm
Full weight, kg: 2330
Body type: Cab-over van
Doors / seats: 4 door / 3

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: ×
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: N04C-TH
Type: inline 4 cylinder IC-turbo (Diesel)
Bore x stroke, mm: 104.0x118.0
Engine size, cc: 4009
Compression ratio: 18.0
Fuel injection: コモンレール type 燃料噴射装置
Max power, hp/rpm: 116ps(85kW)/3000rpm
Max torque, Nm/rpm: 29.0kg m(284N m)/1600rpm
Supercharger: IC turbo
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 11.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type コイルばね
Rear suspension: Axle 半楕円板ばね
Front brake: disk
Rear brake: disk
Front wheel: 195/75R15
Rear wheel: 185/65R15
Min turn diameter, m: 4.4

Gearbox

Number of stages: 6AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.742	2.003	1.343	1.000	0.773	0.634	—	—	3.539

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyan / Other Dark cyanPearlGold
