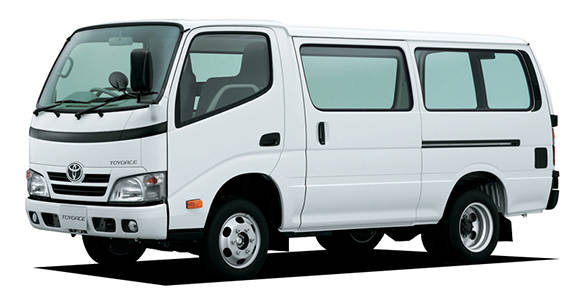

TOYOTA TOYOACE ROOT VAN BASE GRADE

TOYOTA TOYOACE ROOT VAN

KDY241V · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: KDY241V
Dates releasing: 2012.6~
Base price, ¥: LDF-KDY241V
Body size: 4690x1695x1985
Interior (LxWxH): ----x----x----
Wheelbase: 2600
Track f/r: 1425mm/1285mm
Full weight, kg: 2010
Body type: Cab-over van
Doors / seats: 4 door / 3

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 1KD-FTV
Type: inline 4 cylinder IC-turbo (Diesel)
Bore x stroke, mm: 96.0x103.0
Engine size, cc: 2982
Compression ratio: 15.0
Fuel injection: コモンレール type 燃料噴射装置
Max power, hp/rpm: 144ps(106kW)/3400rpm
Max torque, Nm/rpm: 30.6kg m(300N m)/1200~3200rpm
Supercharger: IC turbo
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 8.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type トーションバーばね
Rear suspension: Axle 半楕円板ばね
Front brake: disk
Rear brake: Drum
Front wheel: 175/75R15
Rear wheel: 175/75R15
Min turn diameter, m: 4.8

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.313	2.330	1.436	1.000	0.838	—	—	—	4.220

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyan / Other Dark cyanPearlGold
