TOYOTA VITZ B

TOYOTA VITZ

SCP10 · B

Description

Modification: B
Chassis ID: SCP10
Dates releasing: 2001.12~
Base price, ¥: UA-SCP10
Body size: 3640x1660x1500
Interior (LxWxH): 1800x1380x1265
Wheelbase: 2370
Track f/r: 1450mm/1430mm
Full weight, kg: 840
Body type: Hatch
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓

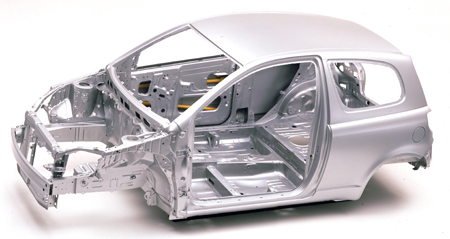

Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ×

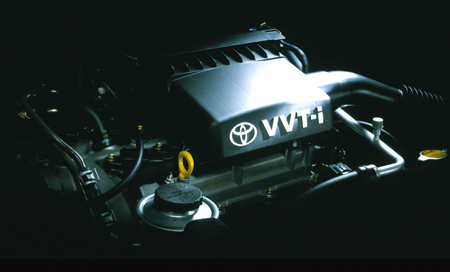

Engine

Model: 1SZ-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 69.0x66.7
Engine size, cc: 997
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 70ps(51kW)/6000rpm
Max torque, Nm/rpm: 9.5kg m(93N m)/4100rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 155/80R13 79S
Rear wheel: 155/80R13 79S
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ◯

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.875	1.568	1.000	0.697	—	—	—	—	2.300

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshesYellowYellow-green / Light green metallicBlack (P) / Other Black (P)Magenta / Other MagentaSilverRed / Super Red VBlue / Strong blue metallicDark cyanPearl / Pearl WhiteGold / Champagne metallic
