TOYOTA VITZ F

TOYOTA VITZ

KSP90 · F

Description

Modification: F
Chassis ID: KSP90
Dates releasing: 2005.12~
Base price, ¥: DBA-KSP90
Body size: 3750x1695x1520
Interior (LxWxH): 1855x1390x1270
Wheelbase: 2460
Track f/r: 1480mm/1470mm
Full weight, kg: 980
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: ×

Comfort

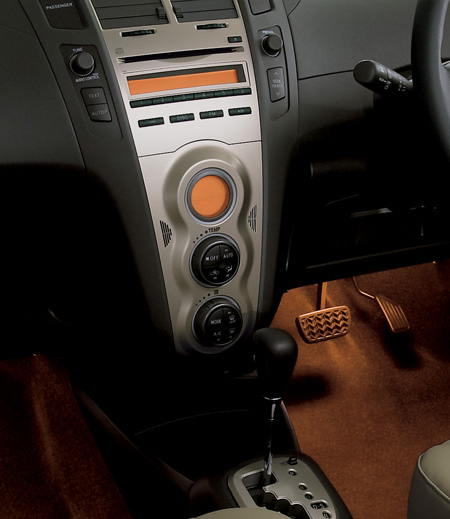

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

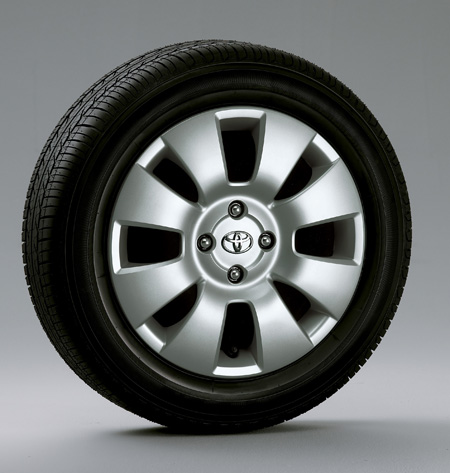

Alloy wheels: Option settings YES
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1KR-FE
Type: inline 3 cylinder DOHC
Bore x stroke, mm: 71.0x83.9
Engine size, cc: 996
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 71ps(52kW)/6000rpm
Max torque, Nm/rpm: 9.6kg m(94N m)/3600rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum

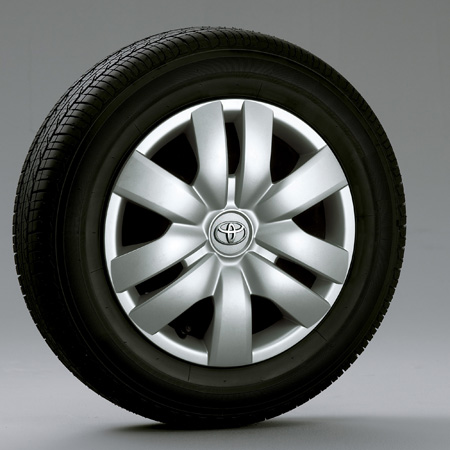

Front wheel: 165/70R14
Rear wheel: 165/70R14
Min turn diameter, m: 4.4

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.426	—	—	—	—	—	—	—	—	2.505

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurple / Other PurpleAshesYellowYellow-green / Light green metallicBlack (P) / Light blue metallicMagenta / Other MagentaSilver / Other SilverRed / Super Red VBlueDark cyanPearlGold / Other Gold
