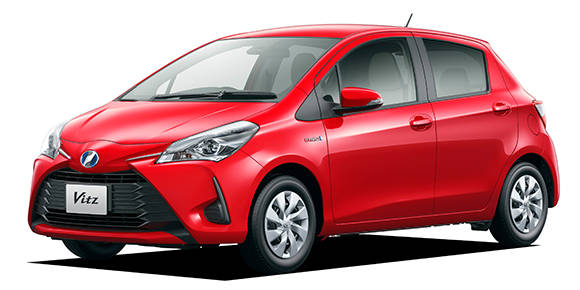

TOYOTA VITZ F M PACKAGE

TOYOTA VITZ

KSP130 · F M PACKAGE

Description

Modification: F M PACKAGE
Chassis ID: KSP130
Dates releasing: 2017.1~
Base price, ¥: DBA-KSP130
Body size: 3945x1695x1500
Interior (LxWxH): 1920x1390x1250
Wheelbase: 2510
Track f/r: 1485mm/1470mm
Full weight, kg: 970
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ×

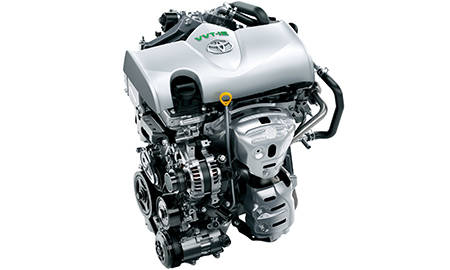

Engine

Model: 1KR-FE
Type: inline 3 cylinder DOHC
Bore x stroke, mm: 71.0x83.9
Engine size, cc: 996
Compression ratio: 11.0
Fuel injection: 電子制御 type 燃料噴射装置(EFI)
Max power, hp/rpm: 69ps(51kW)/6000rpm
Max torque, Nm/rpm: 9.4kg m(92N m)/4300rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/70R14
Rear wheel: 165/70R14
Min turn diameter, m: 4.5

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.426	—	—	—	—	—	—	—	—	2.505~1.736

Available colors

black / black micawhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRed / Super Red VBlueDark cyanPearlGold
