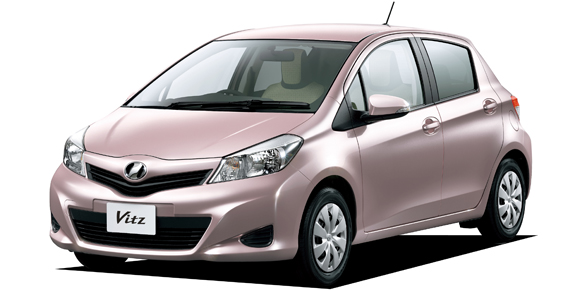

TOYOTA VITZ F SMART STOP PACKAGE

TOYOTA VITZ

NSP130 · F SMART STOP PACKAGE

Description

Modification: F SMART STOP PACKAGE
Chassis ID: NSP130
Dates releasing: 2010.12~
Base price, ¥: DBA-NSP130
Body size: 3885x1695x1500
Interior (LxWxH): 1915x1390x1250
Wheelbase: 2510
Track f/r: 1485mm/1470mm
Full weight, kg: 1000
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: VSC(ビークルスタビリティーコントロール)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1NR-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 72.5x80.5
Engine size, cc: 1329
Compression ratio: 11.5
Fuel injection: EFI
Max power, hp/rpm: 95ps(70kW)/6000rpm
Max torque, Nm/rpm: 12.3kg m(121N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/70R14
Rear wheel: 165/70R14
Min turn diameter, m: 4.5

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.426	—	—	—	—	—	—	—	—	2.505

Available colors

black / black micawhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshes / Gray metallicYellowYellow-green / Other Yellow-greenBlack (P) / Light blue metallicMagenta / Other MagentaSilverRed / Super Red VBlueDark cyanPearl / White Pearl Crystal ShineGold
