TOYOTA VITZ RS GS SMART PACKAGE

TOYOTA VITZ

NCP131 · RS GS SMART PACKAGE

Description

Modification: RS GS SMART PACKAGE
Chassis ID: NCP131
Dates releasing: 2014.4~
Base price, ¥: DBA-NCP131
Body size: 3980x1695x1490
Interior (LxWxH): 1920x1390x1250
Wheelbase: 2510
Track f/r: 1465mm/1450mm
Full weight, kg: 1040
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC&TRC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

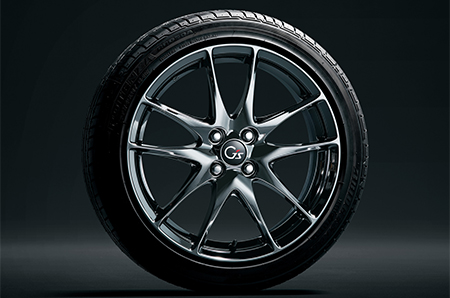

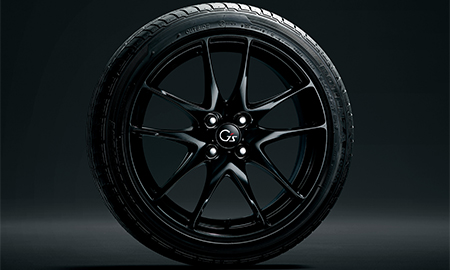

Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1NZ-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 75.0x84.7
Engine size, cc: 1496
Compression ratio: 10.5
Fuel injection: 電子制御 type 燃料噴射装置(EFI)
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 14.1kg m(138N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/45R17
Rear wheel: 205/45R17
Min turn diameter, m: 5.6

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ◯

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.166	1.904	1.392	1.031	0.815	—	—	—	3.250

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshes / Gray metallicYellow / Other YellowYellow-greenBlack (P)MagentaSilverRed / Super Red VBlue / Other BlueDark cyanPearl / White Pearl Crystal ShineGold
