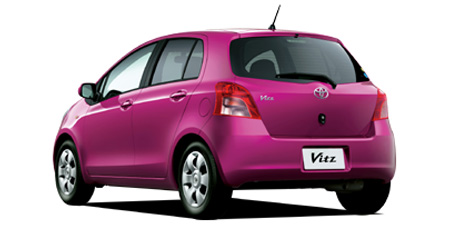

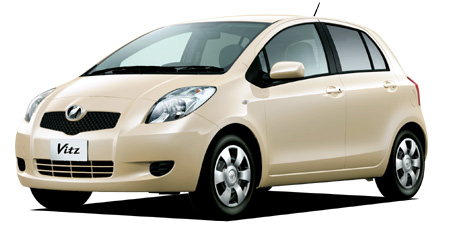

TOYOTA VITZ U

TOYOTA VITZ

SCP90 · U

Description

Modification: U
Chassis ID: SCP90
Dates releasing: 2005.2~
Base price, ¥: DBA-SCP90
Body size: 3750x1695x1520
Interior (LxWxH): 1865x1390x1270
Wheelbase: 2460
Track f/r: 1470mm/1460mm
Full weight, kg: 1030
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

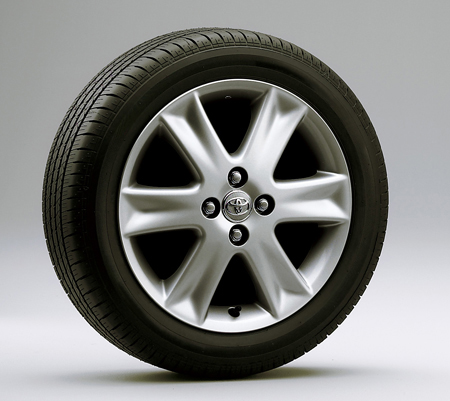

Alloy wheels: Option settings YES

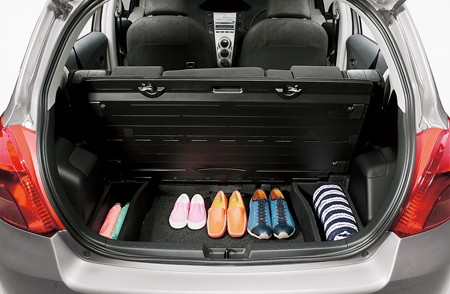

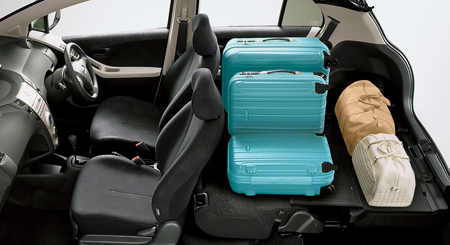

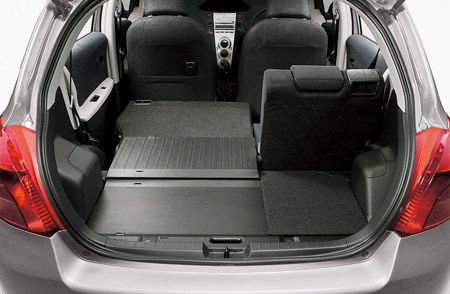

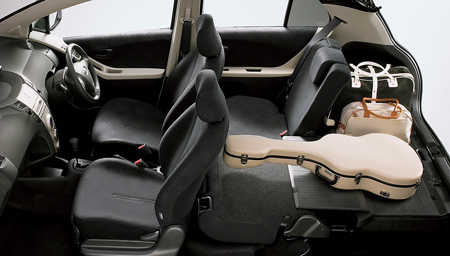

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2SZ-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 72.0x79.6
Engine size, cc: 1296
Compression ratio: 11.0
Fuel injection: EFI
Max power, hp/rpm: 87ps(64kW)/6000rpm
Max torque, Nm/rpm: 11.8kg m(116N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum

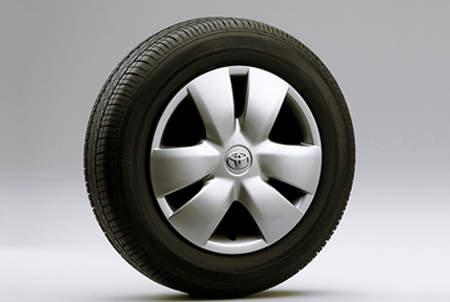

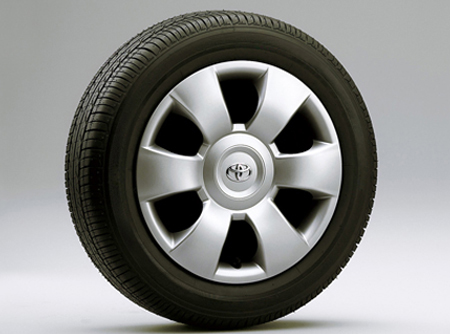

Front wheel: 185/60R15
Rear wheel: 185/60R15
Min turn diameter, m: 4.7

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: CD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.426	—	—	—	—	—	—	—	—	2.505

Available colors

black / black micawhitegreen / Other greenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurple / Other PurpleAshesYellowYellow-greenBlack (P) / Light blue metallicMagentaSilver / Silver metallicRed / Super Red VBlueDark cyanPearlGold / Other Gold
