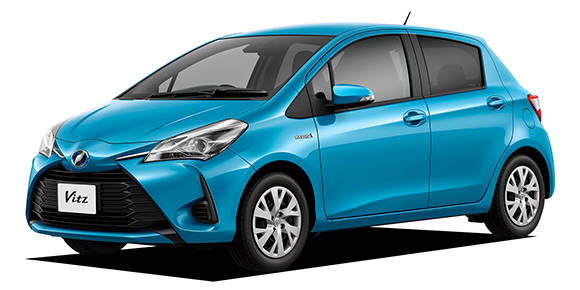

TOYOTA VITZ U

TOYOTA VITZ

NSP135 · U

Description

Modification: U
Chassis ID: NSP135
Dates releasing: 2017.1~
Base price, ¥: DBA-NSP135
Body size: 3945x1695x1530
Interior (LxWxH): 1920x1390x1250
Wheelbase: 2510
Track f/r: 1475mm/1460mm
Full weight, kg: 1080
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

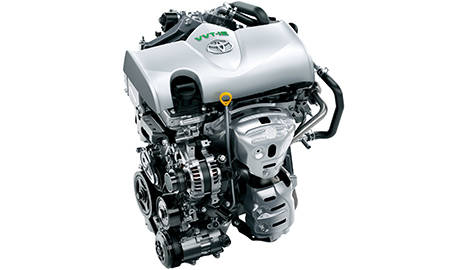

Model: 1NR-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 72.5x80.5
Engine size, cc: 1329
Compression ratio: 11.5
Fuel injection: 電子制御 type 燃料噴射装置(EFI)
Max power, hp/rpm: 95ps(70kW)/6000rpm
Max torque, Nm/rpm: 12.1kg m(119N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline

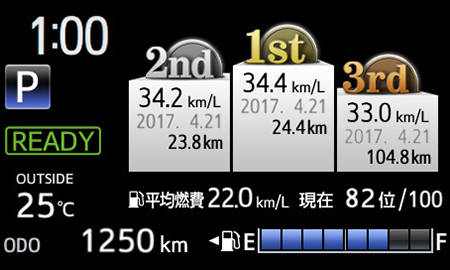

Fuel consumption, l/100km: 5.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65R15
Rear wheel: 175/65R15
Min turn diameter, m: 4.8

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.411	—	—	—	—	—	—	—	—	2.505~1.680

Available colors

black / black micawhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRed / Super Red VBlue / Other BlueDark cyanPearl / White Pearl Crystal ShineGold / Other Gold
