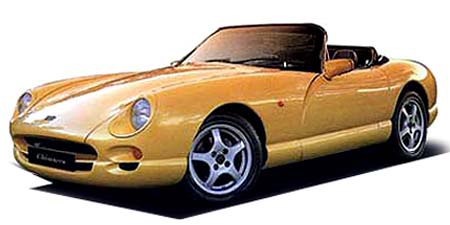

TVR CHIMAERA 500 CLUBMAN

TVR CHIMAERA

— · 500 CLUBMAN

Description

Modification: 500 CLUBMAN
Chassis ID: —
Dates releasing: 1995.3~
Base price, ¥: ----
Body size: 4080x1720x1220
Interior (LxWxH): ----x----x----
Wheelbase: 2286
Track f/r: 1460mm/1460mm
Full weight, kg: 1060
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ×
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ----
Type: V-type 8 cylinder OHV
Bore x stroke, mm: 94.0x90.0
Engine size, cc: 4988
Compression ratio: 10.0
Fuel injection: 電子制御 type 燃料噴射
Max power, hp/rpm: 320ps(235kW)/5500rpm
Max torque, Nm/rpm: 44.5kg m(436.4N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 57 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 不等長 Double wishbone ガスダンパー付 Coil spring スタ&#
Rear suspension: 不等長 Double wishbone ガスダンパー付 Coil spring スタ&#
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/50ZR15
Rear wheel: 245/45ZR16
Min turn diameter, m: ----

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
