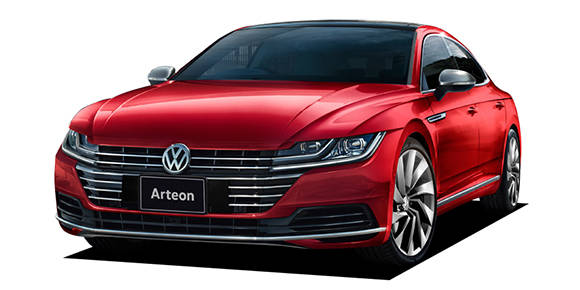

VOLKSWAGEN ARTEON TSI 4MOTION ELEGANCE

VOLKSWAGEN ARTEON

3HDJHF · TSI 4MOTION ELEGANCE

Description

Modification: TSI 4MOTION ELEGANCE
Chassis ID: 3HDJHF
Dates releasing: 2018.10~
Base price, ¥: ABA-3HDJHF
Body size: 4865x1875x1435
Interior (LxWxH): ----x----x----
Wheelbase: 2835
Track f/r: 1585mm/1575mm
Full weight, kg: 1700
Body type: Sedan
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —

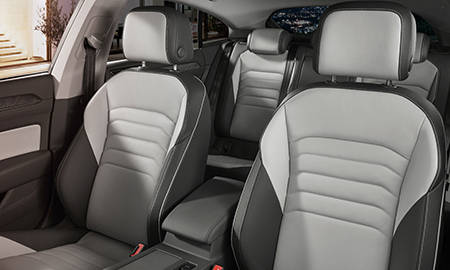

Power front seat: ✓
Power rear seat: ×
Wood panel: ✓

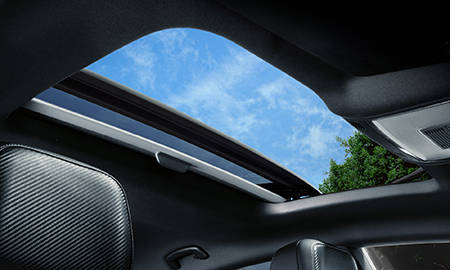

Sunroof: ◯

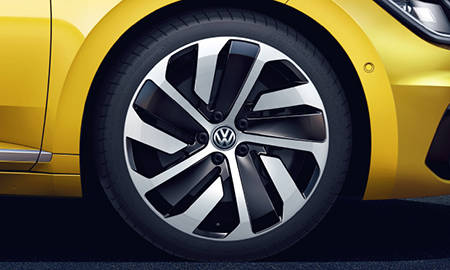

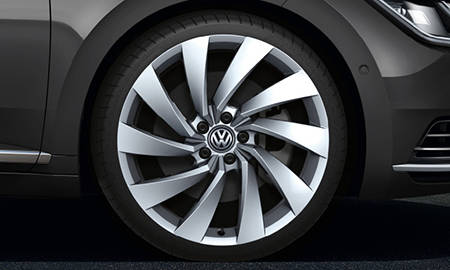

Alloy wheels: 20 inches standard

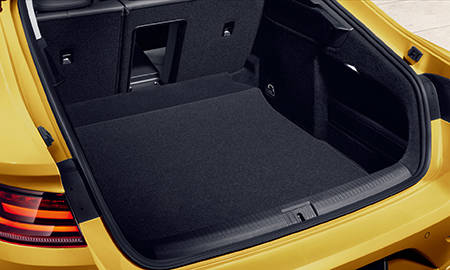

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

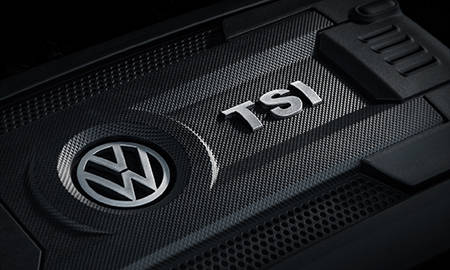

Engine

Model: DJH
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.6
Fuel injection: 電子制御
Max power, hp/rpm: 280ps(206kW)/5600~6500rpm
Max torque, Nm/rpm: 35.7kg m(350N m)/1700~5600rpm
Supercharger: IC turbo
Fuel tank, liters: 66 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/35 R20
Rear wheel: 245/35 R20
Min turn diameter, m: 5.5

Gearbox

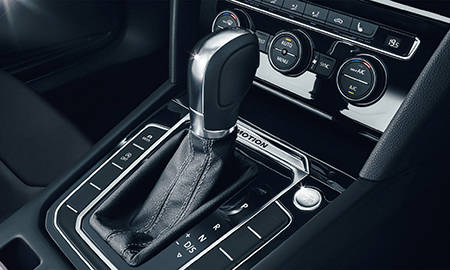

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

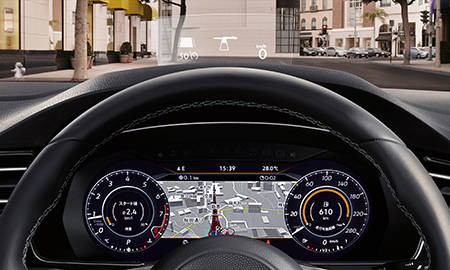

Navigation: ✓
Navigation device: メモ

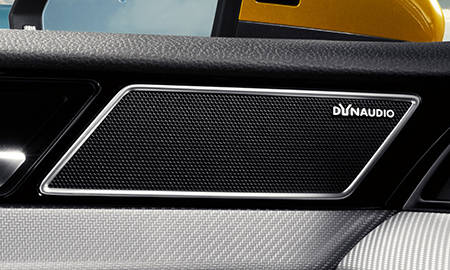

Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.400	2.750	1.766	0.924	0.704	0.754	0.634	—	2.900

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
