JDM Vehicle Catalog

Vehicle Specs

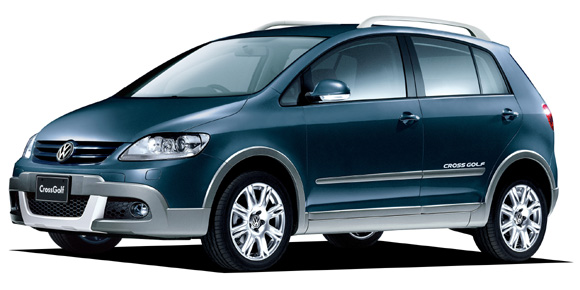

VOLKSWAGEN CROSS GOLF BASE GRADE

VOLKSWAGEN CROSS GOLF

1KBMY · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: 1KBMY
Dates releasing: 2007.12~
Base price, ¥: ABA-1KBMY
Body size: 4240x1775x1655
Interior (LxWxH): ----x----x----
Wheelbase: 2575
Track f/r: 1540mm/1515mm
Full weight, kg: 1490
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム) DSR(ドライバーステアリ&#1253

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: BMY
Type: inline 4 cylinder DOHC 16-valves IC-turbo Sチャ&#125
Bore x stroke, mm: 76.5x75.6
Engine size, cc: 1389
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 140ps(103kW)/5600rpm
Max torque, Nm/rpm: 22.4kg m(220N m)/1500~4000rpm
Supercharger: Turbo + S charger
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/45 R17
Rear wheel: 225/45 R17
Min turn diameter, m: 5.0

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.461	2.150	1.464	1.078	1.093	0.921	—	—	3.989

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold
