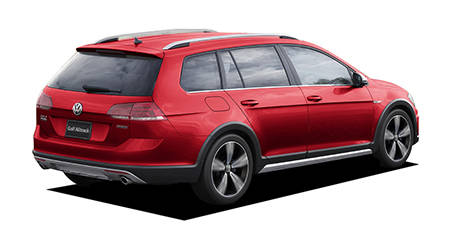

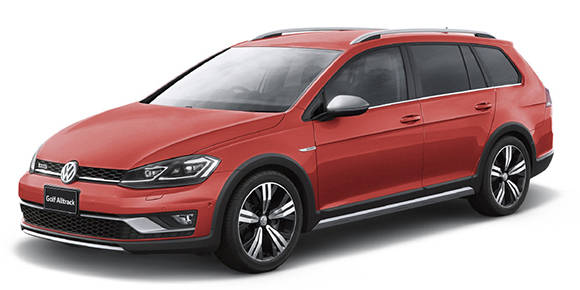

VOLKSWAGEN GOLF ALLTRACK TSI 4MOTION MEISTER

VOLKSWAGEN GOLF ALLTRACK

AUCJSF · TSI 4MOTION MEISTER

Description

Modification: TSI 4MOTION MEISTER
Chassis ID: AUCJSF
Dates releasing: 2019.10~
Base price, ¥: ABA-AUCJSF
Body size: 4585x1800x1510
Interior (LxWxH): ----x----x----
Wheelbase: 2635
Track f/r: 1540mm/1510mm
Full weight, kg: 1540
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×
Sunroof: ×

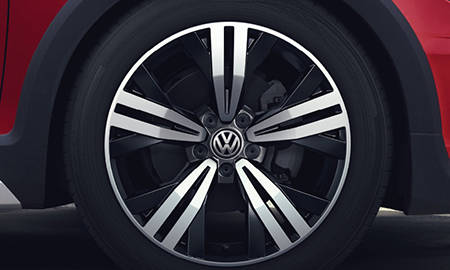

Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: CJS
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x84.1
Engine size, cc: 1798
Compression ratio: 9.6
Fuel injection: 電子制御
Max power, hp/rpm: 180ps(132kW)/4500~6200rpm
Max torque, Nm/rpm: 28.6kg m(280N m)/1350~4500rpm
Supercharger: IC turbo
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/45 R18
Rear wheel: 225/45 R18
Min turn diameter, m: 5.2

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

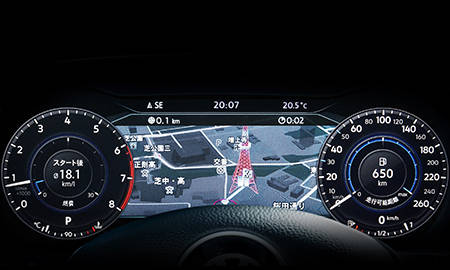

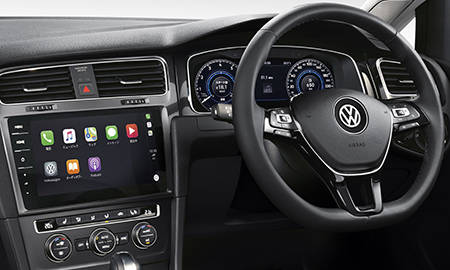

Navigation: ✓
Navigation device: メモ

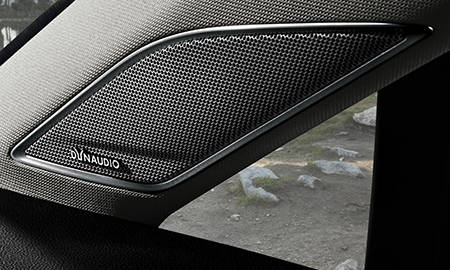

Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.461	2.050	1.300	0.902	0.914	0.756	—	—	3.989

Available colors

black / Other blackwhite / Pure WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearl / Other PearlGold
