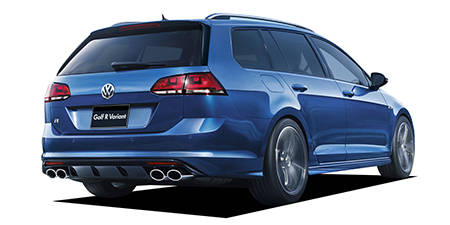

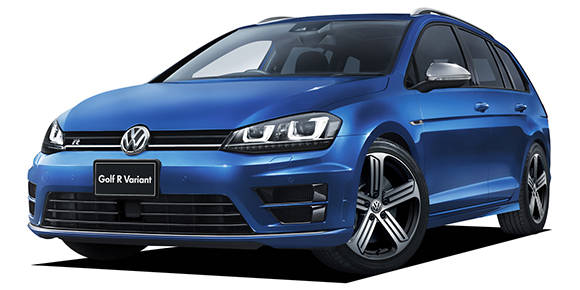

VOLKSWAGEN GOLF R VARIANT BASE GRADE

VOLKSWAGEN GOLF R VARIANT

AUCJXF · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: AUCJXF
Dates releasing: 2015.7~
Base price, ¥: ABA-AUCJXF
Body size: 4595x1800x1465
Interior (LxWxH): ----x----x----
Wheelbase: 2635
Track f/r: 1535mm/1510mm
Full weight, kg: 1560
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム) DSR(ドライバーステアリ&#1253

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓

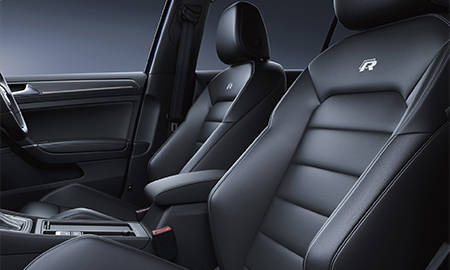

Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×

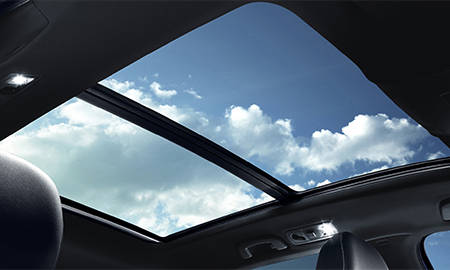

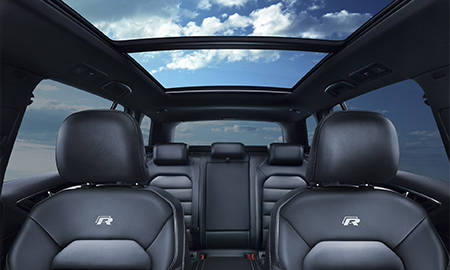

Sunroof: ◯

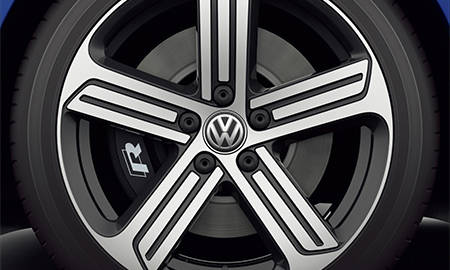

Alloy wheels: 18 inches standard

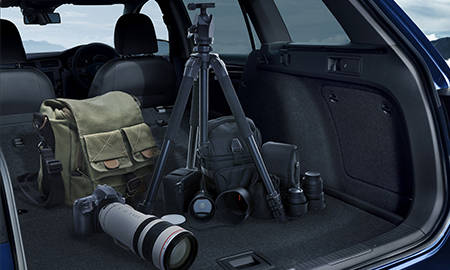

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

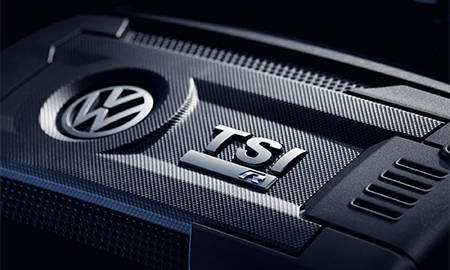

Engine

Model: CJX
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.6
Fuel injection: 電子制御
Max power, hp/rpm: 280ps(206kW)/5100~6500rpm
Max torque, Nm/rpm: 38.7kg m(380N m)/1800~5100rpm
Supercharger: IC turbo
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/40R 18
Rear wheel: 225/40R 18
Min turn diameter, m: 5.2

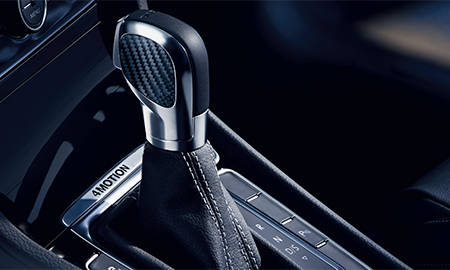

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓

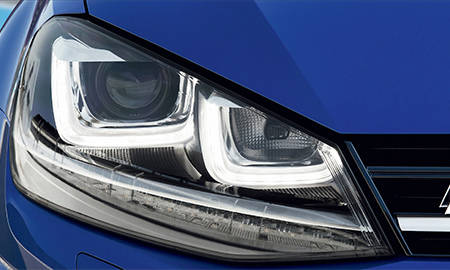

Xenon: ✓
Extra front lights: ×

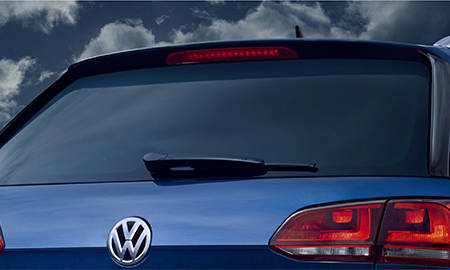

Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.923	1.833	1.307	0.968	1.037	0.812	—	—	3.263

Available colors

black / Other blackwhite / Pure WhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
