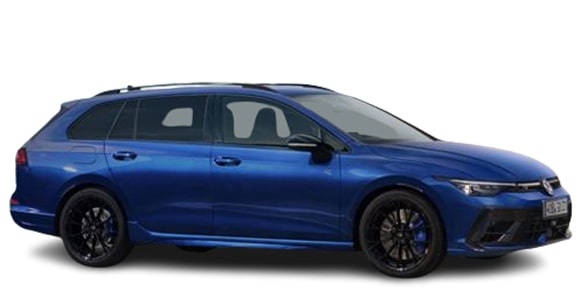

VOLKSWAGEN GOLF R VARIANT BLACK STYLE

VOLKSWAGEN GOLF R VARIANT

CDDNFV · BLACK STYLE

Description

Modification: BLACK STYLE
Chassis ID: CDDNFV
Dates releasing: 2025.6~
Base price, ¥: 7BA-CDDNFV
Body size: 4650x1790x1465
Interior (LxWxH): ----x----x----
Wheelbase: 2670
Track f/r: 1540mm/1515mm
Full weight, kg: 1620
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: 19 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: DNF
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.3
Fuel injection: ----
Max power, hp/rpm: 333ps(245kW)/5600~6500rpm
Max torque, Nm/rpm: 42.8kg m(420N m)/2100~5500rpm
Supercharger: IC turbo
Fuel tank, liters: 56 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 235/35 R19
Rear wheel: 235/35 R19
Min turn diameter, m: 5.1

Gearbox

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.190	2.750	1.896	1.040	0.793	0.860	0.661	—	2.900

Available colors

black / Other blackwhite / Pure WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
