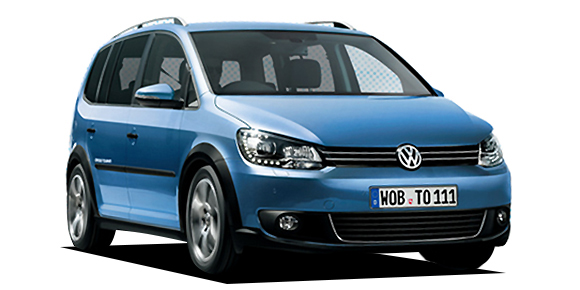

VOLKSWAGEN GOLF TOURAN CROSS TOURAN

VOLKSWAGEN GOLF TOURAN

1TCTHW · CROSS TOURAN

Description

Modification: CROSS TOURAN
Chassis ID: 1TCTHW
Dates releasing: 2013.5~
Base price, ¥: DBA-1TCTHW
Body size: 4405x1800x1680
Interior (LxWxH): ----x----x----
Wheelbase: 2675
Track f/r: 1550mm/1535mm
Full weight, kg: 1580
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム)DSR(ドライバーステアリ&#12531

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: CTH
Type: inline 4 cylinder DOHC 16-valves IC-turbo Sチャ&#125
Bore x stroke, mm: 76.5x75.6
Engine size, cc: 1389
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 140ps(103kW)/5600rpm
Max torque, Nm/rpm: 22.4kg m(220N m)/1250~4000rpm
Supercharger: Turbo + S charger
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/50R17
Rear wheel: 235/45R17
Min turn diameter, m: 5.3

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.764	2.272	1.531	1.121	1.176	0.951	0.795	—	2.045

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
