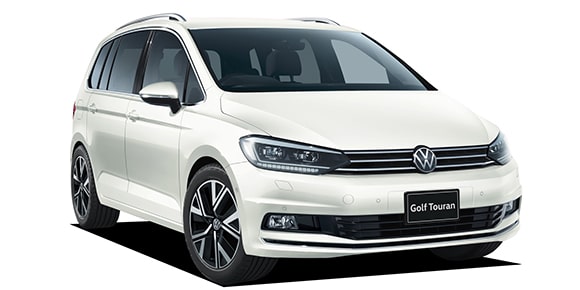

VOLKSWAGEN GOLF TOURAN TDI COMFORTLINE

VOLKSWAGEN GOLF TOURAN

1TDFG · TDI COMFORTLINE

Description

Modification: TDI COMFORTLINE
Chassis ID: 1TDFG
Dates releasing: 2021.10~
Base price, ¥: 3DA-1TDFG
Body size: 4535x1830x1670
Interior (LxWxH): ----x----x----
Wheelbase: 2785
Track f/r: 1570mm/1540mm
Full weight, kg: 1670
Body type: MV 1Box

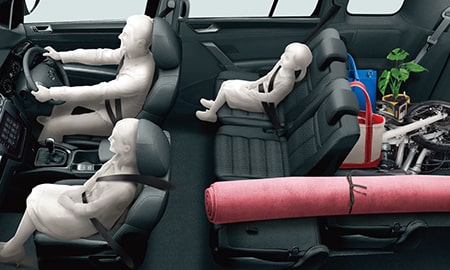

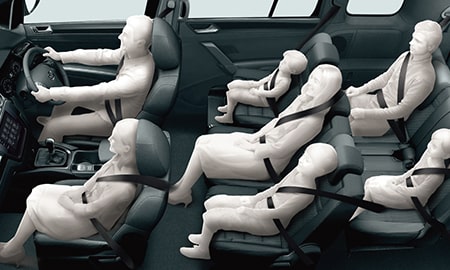

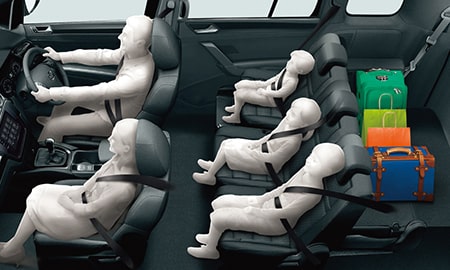

Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

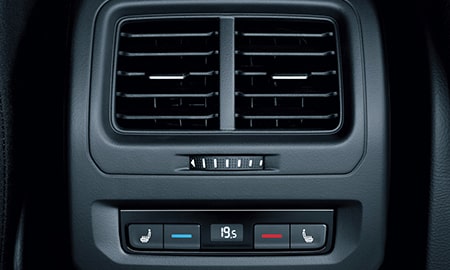

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ×
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

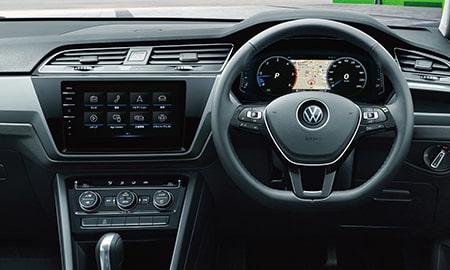

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×

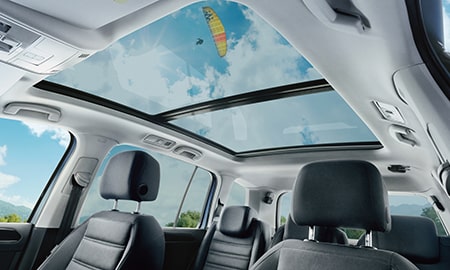

Sunroof: ×
Alloy wheels: 16 inches standard

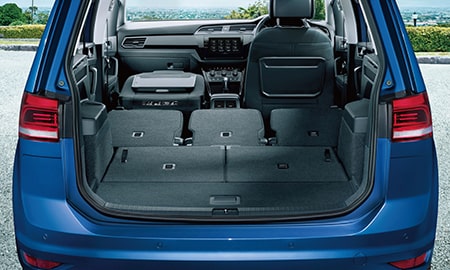

Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: DFG
Type: inline 4 cylinder DOHC 16-valves IC-turbo (Diesel)
Bore x stroke, mm: 81.0x95.5
Engine size, cc: 1968
Compression ratio: 16.2
Fuel injection: 電子制御
Max power, hp/rpm: 150ps(110kW)/3500~4000rpm
Max torque, Nm/rpm: 34.7kg m(340N m)/1750~3000rpm
Supercharger: IC turbo
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R16
Rear wheel: 205/60R16
Min turn diameter, m: 5.5

Gearbox

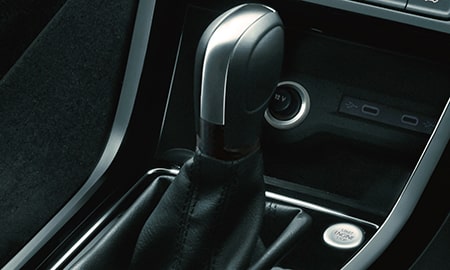

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×

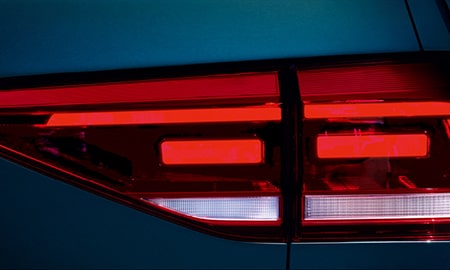

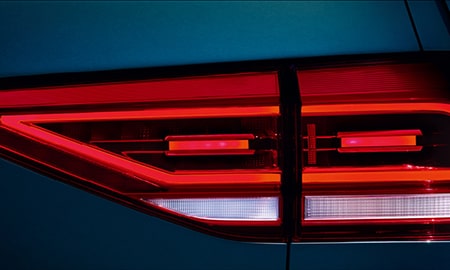

Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.578	2.750	1.677	0.888	0.677	0.722	0.560	—	2.900

Available colors

black / Other blackwhite / Pure WhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold
