JDM Vehicle Catalog

Vehicle Specs

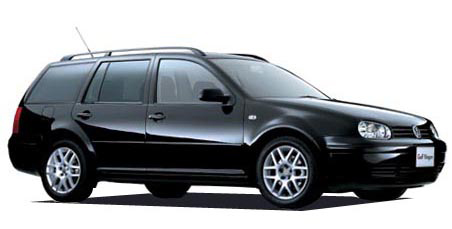

VOLKSWAGEN GOLF WAGON EXCLUSIVE

VOLKSWAGEN GOLF WAGON

1JAPK · EXCLUSIVE

Description

Modification: EXCLUSIVE
Chassis ID: 1JAPK
Dates releasing: 2002.5~
Base price, ¥: GF-1JAPK
Body size: 4400x1735x1490
Interior (LxWxH): ----x----x----
Wheelbase: 2515
Track f/r: 1510mm/1485mm
Full weight, kg: 1340
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: EDS(エレクトロニックディファレンシャルロックシステム) ESP(エレクトロニ&#1

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: APK
Type: inline 4 cylinder SOHC
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 10.5
Fuel injection: 電子制御
Max power, hp/rpm: 116ps(85kW)/5200rpm
Max torque, Nm/rpm: 17.3kg m(170N m)/2400rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (スタビライザーバー付)
Rear suspension: トーションビーム付トレーリングア
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16
Rear wheel: 205/55R16
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with MD player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold
