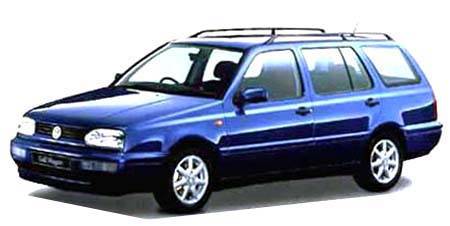

VOLKSWAGEN GOLF WAGON TREND LINE

VOLKSWAGEN GOLF WAGON

1HAGG · TREND LINE

Description

Modification: TREND LINE
Chassis ID: 1HAGG
Dates releasing: 1998.1~
Base price, ¥: E-1HAGG
Body size: 4340x1695x1485
Interior (LxWxH): ----x----x----
Wheelbase: 2475
Track f/r: 1465mm/1450mm
Full weight, kg: 1260
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 14 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: AGG
Type: inline 4 cylinder SOHC
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 10.0
Fuel injection: 電子制御 type 燃料噴射装置(ジーモス)
Max power, hp/rpm: 116ps(85kW)/5400rpm
Max torque, Nm/rpm: 16.9kg m(165.7N m)/2600rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (スタビライザーバー付)
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/60R14
Rear wheel: 195/60R14
Min turn diameter, m: 5.0

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.714	1.441	1.000	0.742	—	—	—	—	2.883

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
