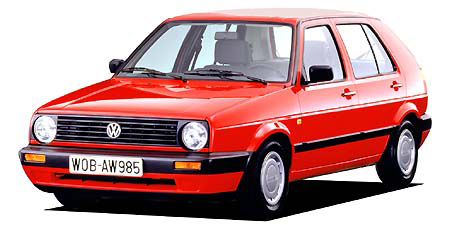

VOLKSWAGEN GOLF 40TH VERSION

VOLKSWAGEN GOLF

19RV · 40TH VERSION

Description

Modification: 40TH VERSION
Chassis ID: 19RV
Dates releasing: 1991.11~
Base price, ¥: E-19RV
Body size: 4050x1665x1415
Interior (LxWxH): ----x----x----
Wheelbase: 2475
Track f/r: 1430mm/1425mm
Full weight, kg: 1050
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: RV
Type: water cooling inline 4 cylinder OHC
Bore x stroke, mm: 81.0x86.4
Engine size, cc: 1780
Compression ratio: 10.0
Fuel injection: Electronically controlled fuel injection system
Max power, hp/rpm: 105ps(77kW)/5400rpm
Max torque, Nm/rpm: 15.1kg m(148.1N m)/3800rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut / Coil spring type (スタビライザーバー付)
Rear suspension: トレーリングアーム/ Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 185/55 VR15
Rear wheel: 185/55 VR15
Min turn diameter, m: 5.0

Gearbox

Number of stages: 3AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.714	1.500	1.000	—	—	—	—	—	2.429

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
