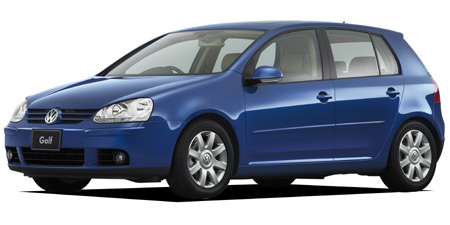

VOLKSWAGEN GOLF E

VOLKSWAGEN GOLF

1KBLP · E

Description

Modification: E
Chassis ID: 1KBLP
Dates releasing: 2008.1~
Base price, ¥: ABA-1KBLP
Body size: 4205x1760x1520
Interior (LxWxH): ----x----x----
Wheelbase: 2575
Track f/r: 1540mm/1515mm
Full weight, kg: 1320
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム) DSR(ドライバーステアリ&#1253

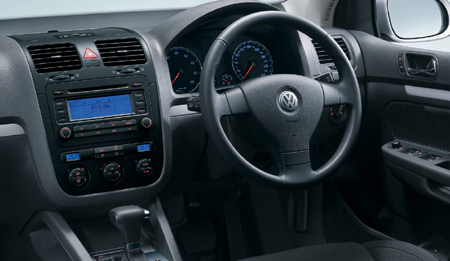

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO

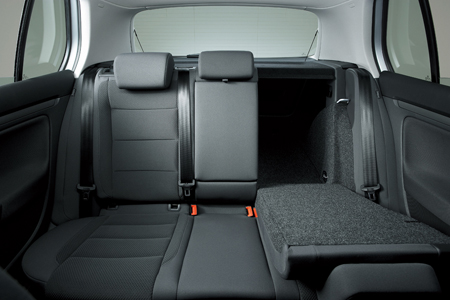

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: BLF
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 76.5x86.9
Engine size, cc: 1597
Compression ratio: 12.0
Fuel injection: 電子制御
Max power, hp/rpm: 116ps(85kW)/6000rpm
Max torque, Nm/rpm: 15.8kg m(155N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65 R15
Rear wheel: 195/65 R15
Min turn diameter, m: 5.0

Gearbox

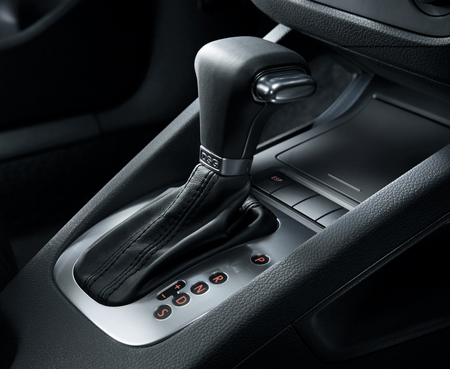

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

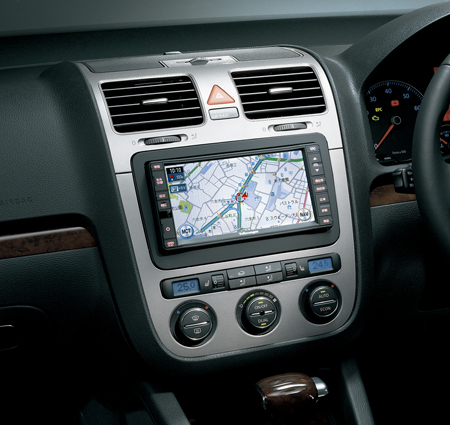

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.148	2.370	1.555	1.154	0.859	0.685	—	—	3.393

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
