JDM Vehicle Catalog

Vehicle Specs

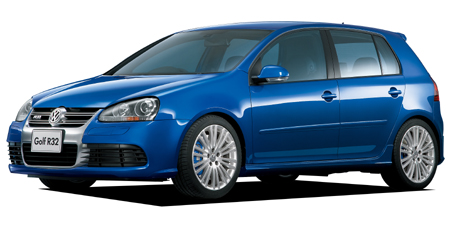

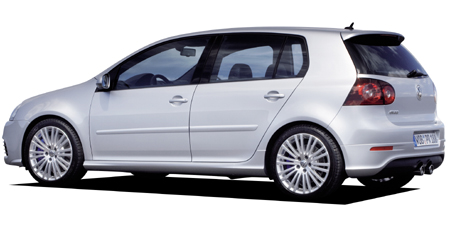

VOLKSWAGEN GOLF R32

VOLKSWAGEN GOLF

1KBUBF · R32

Description

Modification: R32
Chassis ID: 1KBUBF
Dates releasing: 2006.2~
Base price, ¥: GH-1KBUBF
Body size: 4250x1760x1505
Interior (LxWxH): ----x----x----
Wheelbase: 2575
Track f/r: 1535mm/1510mm
Full weight, kg: 1540
Body type: Hatch
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム) DSR(ドライバーステアリ&#1253

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: BUB
Type: V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 84.0x95.9
Engine size, cc: 3188
Compression ratio: 10.8
Fuel injection: 電子制御
Max power, hp/rpm: 250ps(184kW)/6300rpm
Max torque, Nm/rpm: 32.6kg m(320N m)/2500~3000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/40 R18
Rear wheel: 225/40 R18
Min turn diameter, m: 5.0

Gearbox

Number of stages: 6MT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.357	2.086	1.468	1.088	1.108	0.911	—	—	3.989

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
