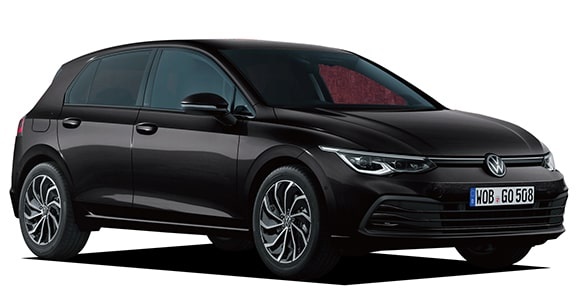

VOLKSWAGEN GOLF TDI ACTIVE ADVANCE PLATINUM EDITION

VOLKSWAGEN GOLF

CDDTT · TDI ACTIVE ADVANCE PLATINUM EDITION

Description

Modification: TDI ACTIVE ADVANCE PLATINUM EDITION
Chassis ID: CDDTT
Dates releasing: 2024.3~
Base price, ¥: 3DA-CDDTT
Body size: 4295x1790x1475
Interior (LxWxH): ----x----x----
Wheelbase: 2620
Track f/r: 1535mm/1505mm
Full weight, kg: 1460
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

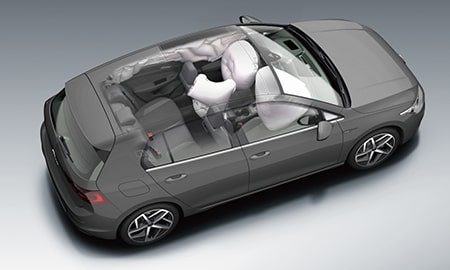

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

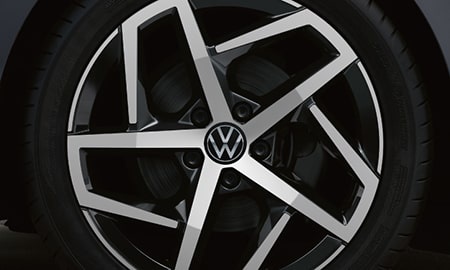

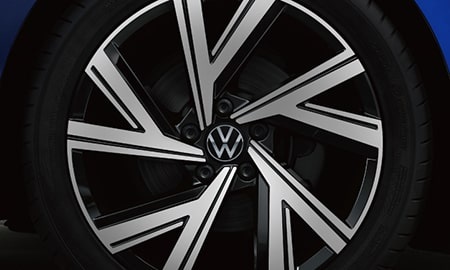

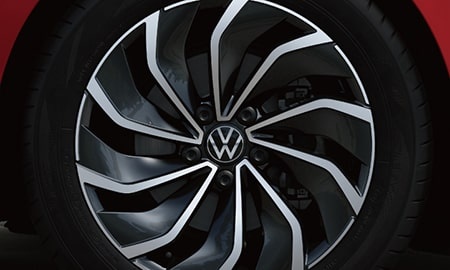

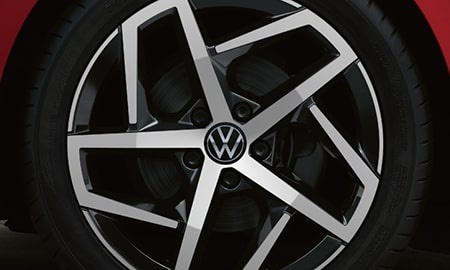

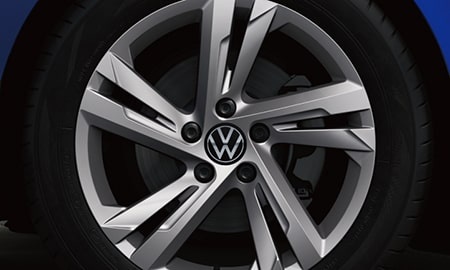

Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: DTT
Type: inline 4 cylinder DOHC 16-valves IC-turbo (Diesel)
Bore x stroke, mm: 81.0x95.5
Engine size, cc: 1968
Compression ratio: 16.0
Fuel injection: 電子制御 type 燃料噴射
Max power, hp/rpm: 150ps(110kW)/3000~4200rpm
Max torque, Nm/rpm: 36.7kg m(360N m)/1600~2750rpm
Supercharger: IC turbo
Fuel tank, liters: 51 l
Fuel: Diesel
Fuel consumption, l/100km: 4.5

Steering & suspension

Steering: Power assist equipped rack&pinion

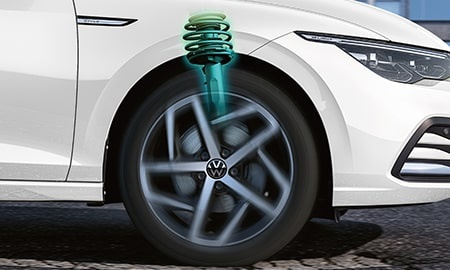

Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/45 R17
Rear wheel: 225/45 R17
Min turn diameter, m: 5.1

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

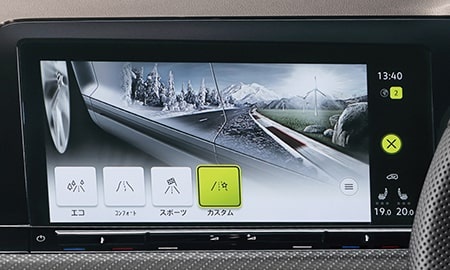

Navigation: ✓
Navigation device: メモ

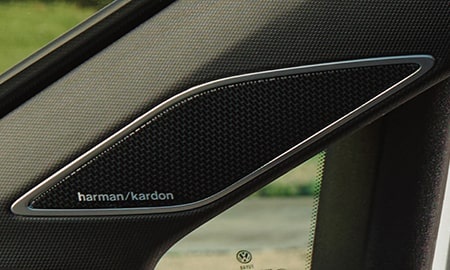

Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.578	2.750	1.677	0.888	0.677	0.722	0.560	—	2.900

Available colors

black / Other blackwhite / Pure WhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
