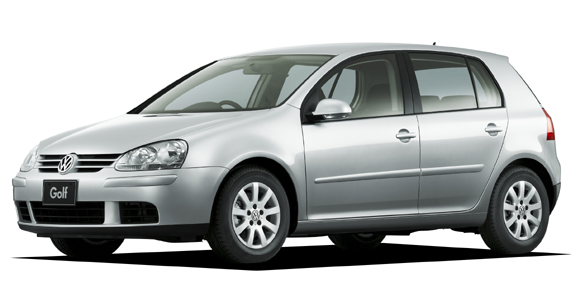

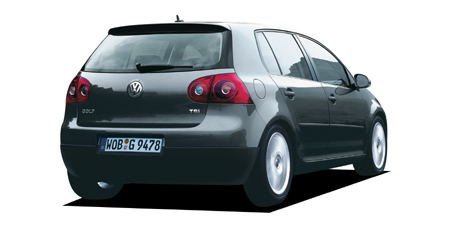

VOLKSWAGEN GOLF TSI COMFORTLINE

VOLKSWAGEN GOLF

1KBMY · TSI COMFORTLINE

Description

Modification: TSI COMFORTLINE
Chassis ID: 1KBMY
Dates releasing: 2008.1~
Base price, ¥: ABA-1KBMY
Body size: 4205x1760x1520
Interior (LxWxH): ----x----x----
Wheelbase: 2575
Track f/r: 1535mm/1510mm
Full weight, kg: 1390
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム) DSR(ドライバーステアリ&#1253

Comfort

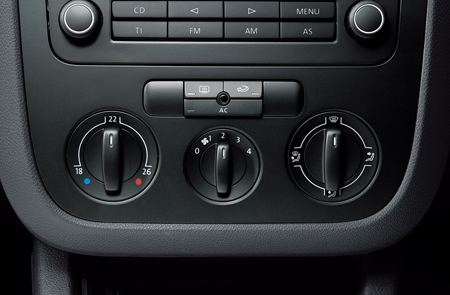

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

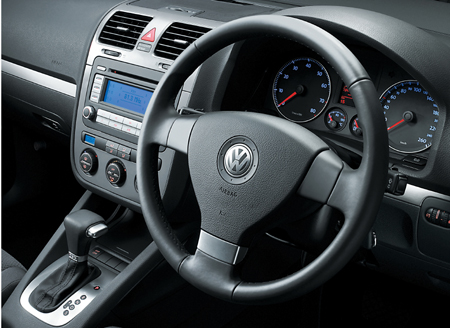

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard

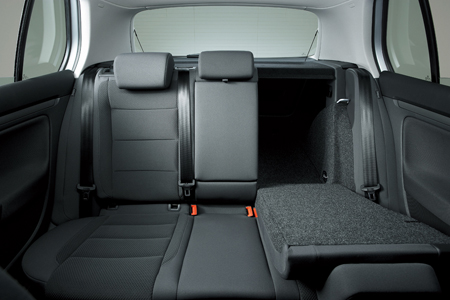

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: BMY
Type: inline 4 cylinder DOHC 16-valves IC-turbo Sチャ&#125
Bore x stroke, mm: 76.5x75.6
Engine size, cc: 1389
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 140ps(103kW)/5600rpm
Max torque, Nm/rpm: 22.4kg m(220N m)/1500~4000rpm
Supercharger: Turbo + S charger
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65 R15
Rear wheel: 195/65 R15
Min turn diameter, m: 5.0

Gearbox

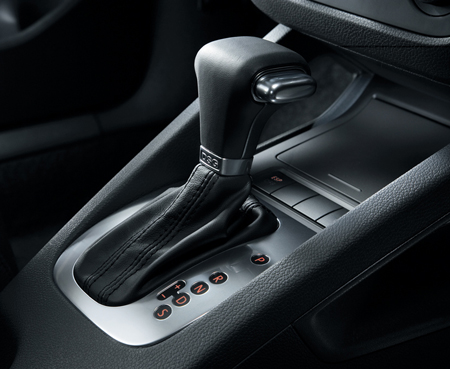

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

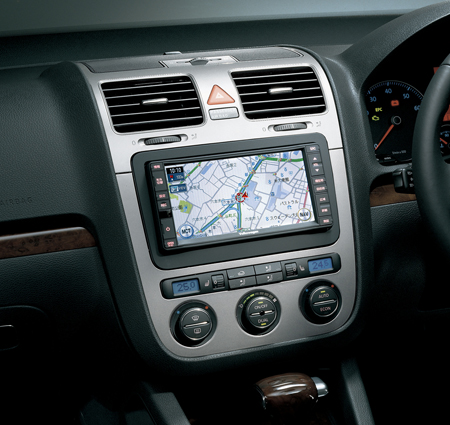

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.461	2.150	1.464	1.078	1.093	0.921	—	—	3.989

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
