JDM Vehicle Catalog

Vehicle Specs

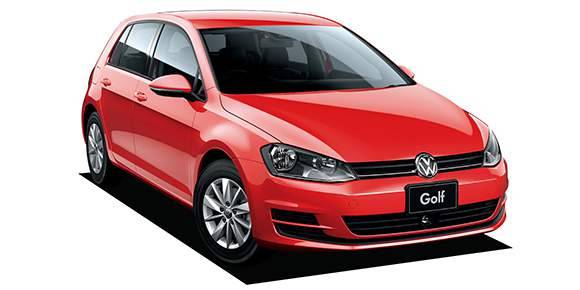

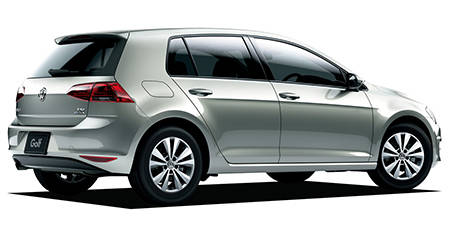

VOLKSWAGEN GOLF TSI COMFORTLINE BLUEMOTION TECHNOLOGY

VOLKSWAGEN GOLF

AUCJZ · TSI COMFORTLINE BLUEMOTION TECHNOLOGY

Description

Modification: TSI COMFORTLINE BLUEMOTION TECHNOLOGY
Chassis ID: AUCJZ
Dates releasing: 2015.7~
Base price, ¥: DBA-AUCJZ
Body size: 4265x1800x1460
Interior (LxWxH): ----x----x----
Wheelbase: 2635
Track f/r: 1545mm/1515mm
Full weight, kg: 1240
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム) DSR(ドライバーステアリ&#1253

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: CJZ
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 71.0x75.6
Engine size, cc: 1197
Compression ratio: 10.5
Fuel injection: 電子制御
Max power, hp/rpm: 105ps(77kW)/4500~5500rpm
Max torque, Nm/rpm: 17.8kg m(175N m)/1400~4000rpm
Supercharger: IC turbo
Fuel tank, liters: 50 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 4.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: トレーリングアーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55 R16
Rear wheel: 205/55 R16
Min turn diameter, m: 5.2

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.764	2.272	1.531	1.121	1.176	0.951	0.795	—	4.169

Available colors

black / Other blackwhite / Pure WhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
