Vehicle Specs

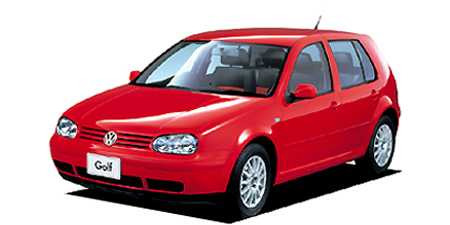

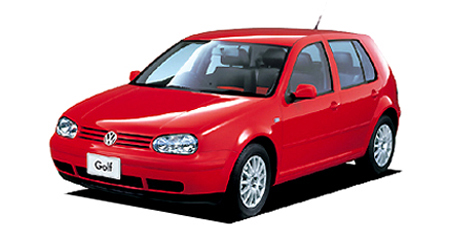

VOLKSWAGEN GOLF ZM EDITION

VOLKSWAGEN GOLF

1JAEH · ZM EDITION

Description

Modification: ZM EDITION
Chassis ID: 1JAEH
Dates releasing: 2001.2~
Base price, ¥: GF-1JAEH
Body size: 4155x1735x1455
Interior (LxWxH): ----x----x----
Wheelbase: 2515
Track f/r: 1515mm/1495mm
Full weight, kg: 1250
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: AEH
Type: inline 4 cylinder SOHC
Bore x stroke, mm: 81.0x77.4
Engine size, cc: 1595
Compression ratio: 10.3
Fuel injection: ジーモス2
Max power, hp/rpm: 101ps(74kW)/5600rpm
Max torque, Nm/rpm: 14.8kg m(145N m)/3800rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (スタビライザーバー付)
Rear suspension: トーションビーム付トレーリングア
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15
Rear wheel: 195/65R15
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: CD
Audio: AM/FM radio with MD player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.714	1.441	1.000	0.742	—	—	—	—	2.883

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
