JDM Vehicle Catalog

Vehicle Specs

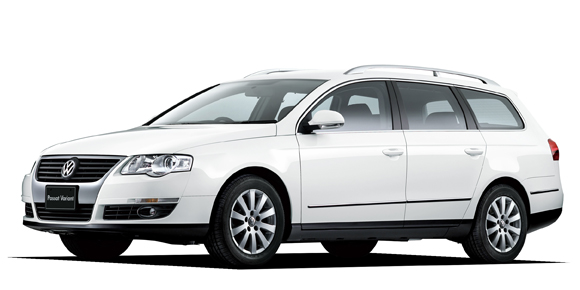

VOLKSWAGEN PASSAT VARIANT TSI COMFORTLINE

VOLKSWAGEN PASSAT VARIANT

3CBZB · TSI COMFORTLINE

Description

Modification: TSI COMFORTLINE
Chassis ID: 3CBZB
Dates releasing: 2008.10~
Base price, ¥: ABA-3CBZB
Body size: 4785x1820x1530
Interior (LxWxH): ----x----x----
Wheelbase: 2710
Track f/r: 1545mm/1545mm
Full weight, kg: 1520
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム)DSR(ドライバーステアリ&#12531

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: BZB
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x84.1
Engine size, cc: 1798
Compression ratio: 9.8
Fuel injection: 電子制御
Max power, hp/rpm: 160ps(118kW)/5000~6200rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/1500~4200rpm
Supercharger: IC turbo
Fuel tank, liters: 70 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/55 R16
Rear wheel: 215/55 R16
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.044	2.370	1.555	1.159	0.851	0.672	—	—	3.192

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRedBlueDark cyan / Other Dark cyanPearlGold
