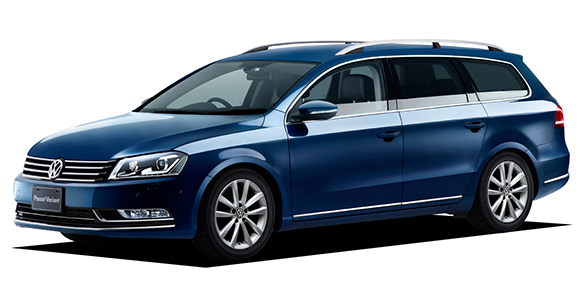

VOLKSWAGEN PASSAT VARIANT TSI COMFORTLINE BLUEMOTION TECHNOLOGY

VOLKSWAGEN PASSAT VARIANT

3CCAX · TSI COMFORTLINE BLUEMOTION TECHNOLOGY

Description

Modification: TSI COMFORTLINE BLUEMOTION TECHNOLOGY
Chassis ID: 3CCAX
Dates releasing: 2013.5~
Base price, ¥: DBA-3CCAX
Body size: 4785x1820x1530
Interior (LxWxH): ----x----x----
Wheelbase: 2710
Track f/r: 1545mm/1545mm
Full weight, kg: 1470
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム) DSR(ドライバーステアリ&#1253

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: CAX
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 76.5x75.6
Engine size, cc: 1389
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 122ps(90kW)/5000rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/1500~4000rpm
Supercharger: IC turbo
Fuel tank, liters: 70 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 5.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/55 R16
Rear wheel: 215/55 R16
Min turn diameter, m: 5.3

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.764	2.272	1.531	1.121	1.176	0.951	0.795	—	2.045

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
