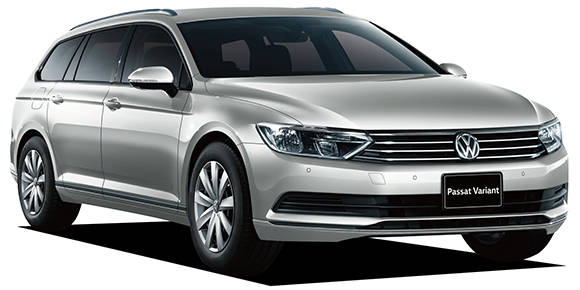

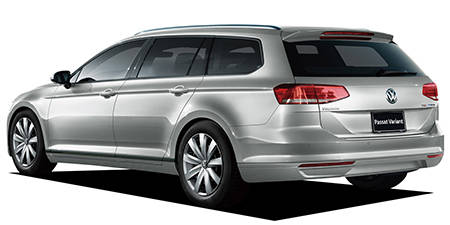

VOLKSWAGEN PASSAT VARIANT TSI TREND LINE

VOLKSWAGEN PASSAT VARIANT

3CCZE · TSI TREND LINE

Description

Modification: TSI TREND LINE
Chassis ID: 3CCZE
Dates releasing: 2015.7~
Base price, ¥: DBA-3CCZE
Body size: 4775x1830x1485
Interior (LxWxH): ----x----x----
Wheelbase: 2790
Track f/r: 1585mm/1570mm
Full weight, kg: 1510
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム) DSR(ドライバーステアリ&#1253

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×

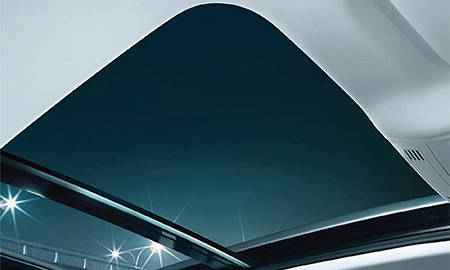

Sunroof: ×

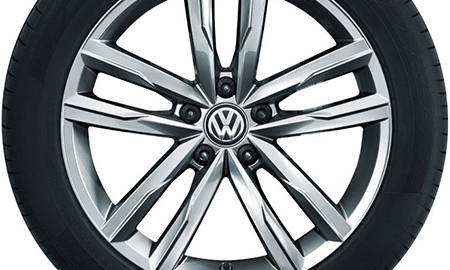

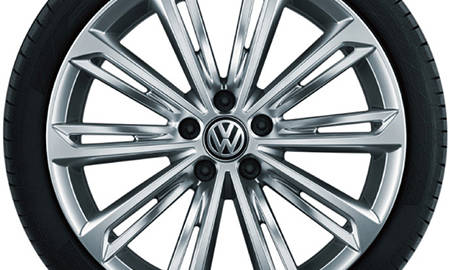

Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: CZE
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 74.5x80.0
Engine size, cc: 1394
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 150ps(110kW)/5000~6000rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/1500~3500rpm
Supercharger: IC turbo
Fuel tank, liters: 59 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 4.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk

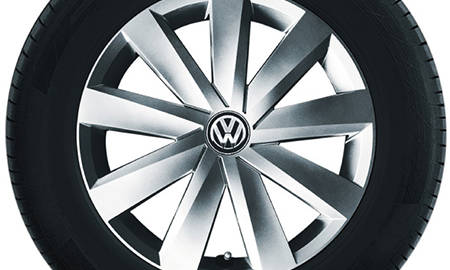

Front wheel: 215/60 R16
Rear wheel: 215/60 R16
Min turn diameter, m: 5.4

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓

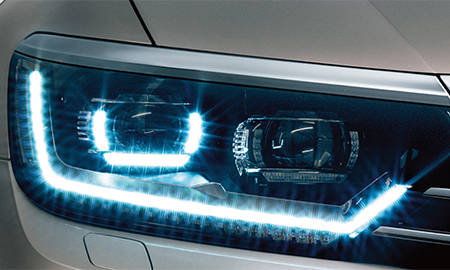

Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.500	2.086	1.342	0.933	0.973	0.777	0.653	—	3.722

Available colors

black / Other blackwhite / Pure WhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
