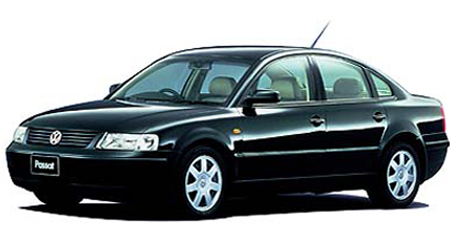

VOLKSWAGEN PASSAT 1.8

VOLKSWAGEN PASSAT

3BADR · 1.8

Description

Modification: 1.8
Chassis ID: 3BADR
Dates releasing: 1997.8~
Base price, ¥: E-3BADR
Body size: 4680x1740x1460
Interior (LxWxH): ----x----x----
Wheelbase: 2705
Track f/r: 1495mm/1500mm
Full weight, kg: 1360
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ADR
Type: water cooling inline 4 cylinder DOHC 20-valves
Bore x stroke, mm: 81.0x86.4
Engine size, cc: 1780
Compression ratio: 10.3
Fuel injection: モトロニック
Max power, hp/rpm: 125ps(92kW)/5800rpm
Max torque, Nm/rpm: 17.1kg m(167.7N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 62 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 4リンク(スタビライザーバー付)
Rear suspension: トーションビーム付トレーリングア
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15
Rear wheel: 195/65R15
Min turn diameter, m: 5.4

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with MD player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.714	1.551	1.000	0.678	—	—	—	—	2.111

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold
