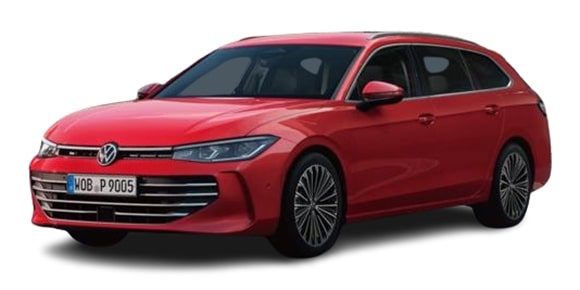

VOLKSWAGEN PASSAT ETSI ELEGANCE BASIC

VOLKSWAGEN PASSAT

CJ15V · ETSI ELEGANCE BASIC

Description

Modification: ETSI ELEGANCE BASIC
Chassis ID: CJ15V
Dates releasing: 2024.11~
Base price, ¥: 3AA-CJ15V
Body size: 4915x1850x1500
Interior (LxWxH): ----x----x----
Wheelbase: 2840
Track f/r: 1585mm/1575mm
Full weight, kg: 1570
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

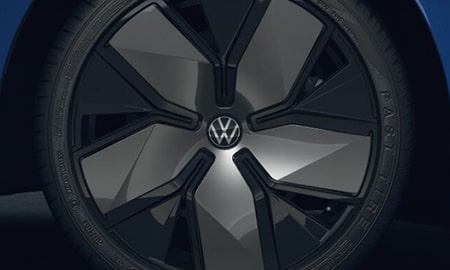

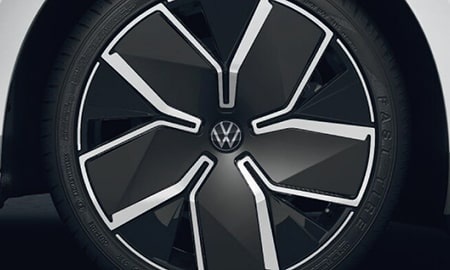

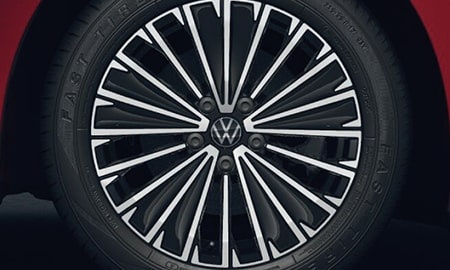

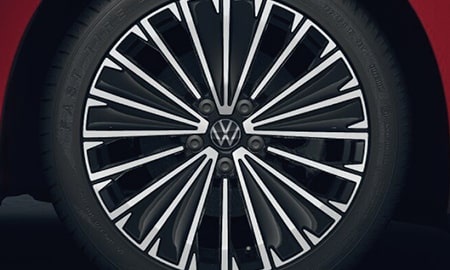

Alloy wheels: 17 inches standard

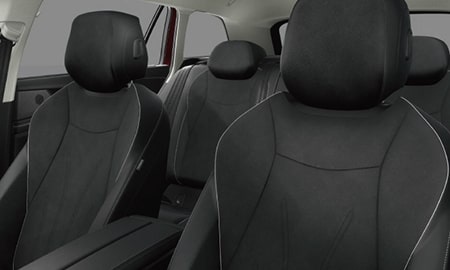

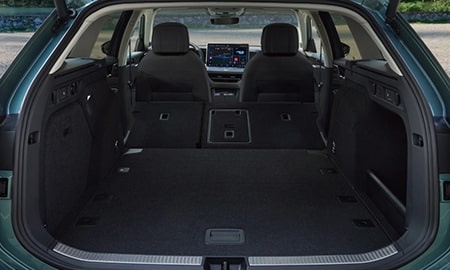

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: DXD
Type: inline 4 cylinder DOHC 16-valves IC-turbo +
Bore x stroke, mm: 74.5x85.9
Engine size, cc: 1497
Compression ratio: 12.0
Fuel injection: 電子制御
Max power, hp/rpm: 150ps(110kW)/5000~6000rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/1500~3500rpm
Supercharger: IC turbo
Fuel tank, liters: 66 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 5.2

Steering & suspension

Steering: Power assist equipped rack&pinion

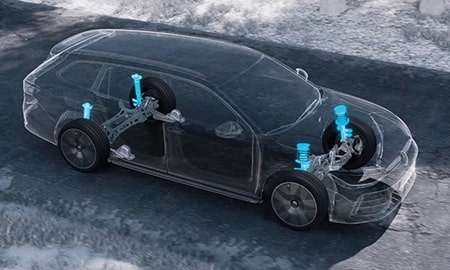

Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: マルチリンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/55 R17
Rear wheel: 215/55 R17
Min turn diameter, m: 5.5

Gearbox

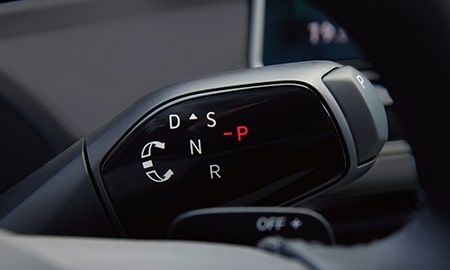

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×

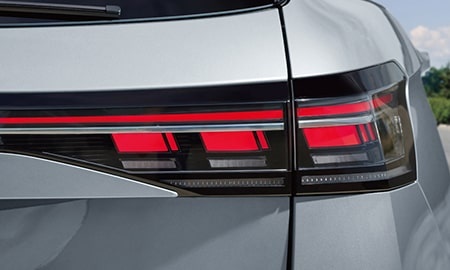

Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

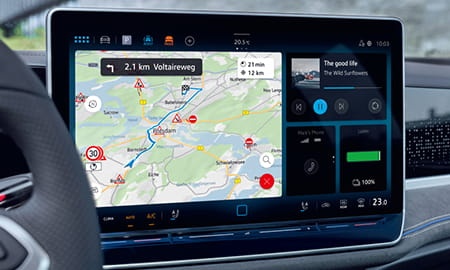

Navigation: ✓
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.500	2.086	1.342	0.940	0.973	0.780	0.653	—	3.722

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyan / Other Dark cyanPearl / Other PearlGold
