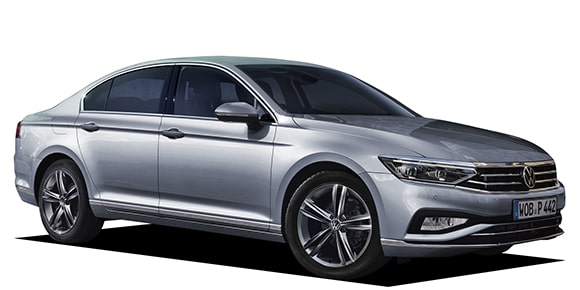

VOLKSWAGEN PASSAT TDI ELEGANCE ADVANCE

VOLKSWAGEN PASSAT

3CDFH · TDI ELEGANCE ADVANCE

Description

Modification: TDI ELEGANCE ADVANCE
Chassis ID: 3CDFH
Dates releasing: 2021.4~
Base price, ¥: 3DA-3CDFH
Body size: 4790x1830x1470
Interior (LxWxH): ----x----x----
Wheelbase: 2790
Track f/r: 1580mm/1560mm
Full weight, kg: 1560
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓

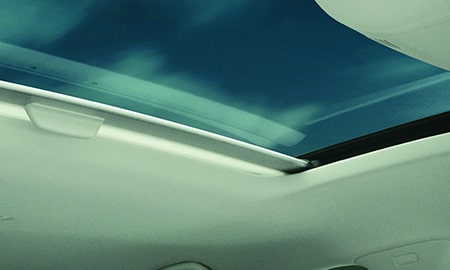

Sunroof: ◯

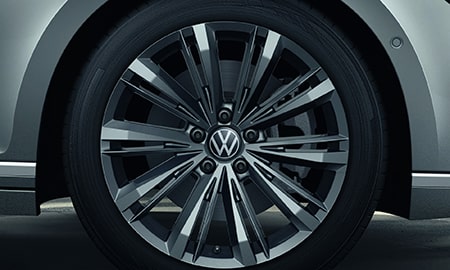

Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: DFH
Type: inline 4 cylinder DOHC 16-valves IC-turbo (Diesel)
Bore x stroke, mm: 81.0x95.5
Engine size, cc: 1968
Compression ratio: 15.5
Fuel injection: 電子制御燃料噴射(コモンレール)装&#3262
Max power, hp/rpm: 190ps(140kW)/3500~4000rpm
Max torque, Nm/rpm: 40.8kg m(400N m)/1900~3300rpm
Supercharger: IC turbo
Fuel tank, liters: 66 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 235/45 R18
Rear wheel: 235/45 R18
Min turn diameter, m: 5.4

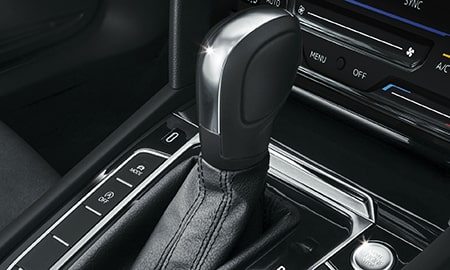

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.578	2.750	1.677	0.888	0.677	0.722	0.560	—	2.900

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearl / Other PearlGold
