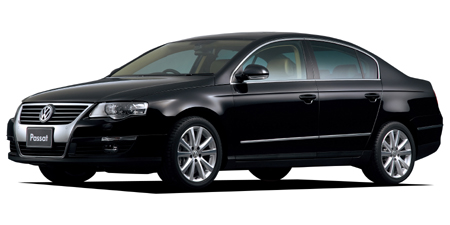

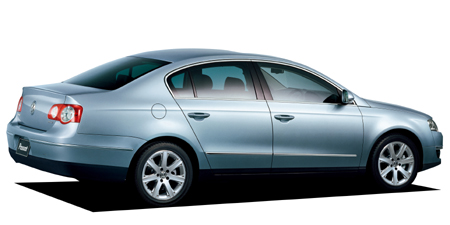

VOLKSWAGEN PASSAT V6 4MOTION

VOLKSWAGEN PASSAT

3CAXZF · V6 4MOTION

Description

Modification: V6 4MOTION
Chassis ID: 3CAXZF
Dates releasing: 2006.4~
Base price, ¥: GH-3CAXZF
Body size: 4785x1820x1490
Interior (LxWxH): ----x----x----
Wheelbase: 2710
Track f/r: 1540mm/1540mm
Full weight, kg: 1660
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: AXZ
Type: V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 86.0x90.9
Engine size, cc: 3168
Compression ratio: 12.0
Fuel injection: 電子制御
Max power, hp/rpm: 250ps(184kW)/6250rpm
Max torque, Nm/rpm: 33.1kg m(325N m)/2750rpm
Supercharger: ×
Fuel tank, liters: 68 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 11.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 235/45 R17
Rear wheel: 235/45 R17
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.933	1.791	1.193	0.837	0.837	0.697	—	—	3.352

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
