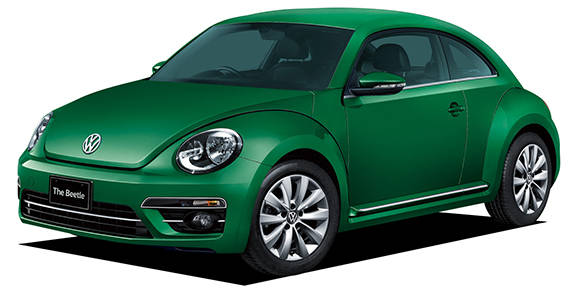

VOLKSWAGEN THE BEETLE BASE

VOLKSWAGEN THE BEETLE

16CBZ · BASE

Description

Modification: BASE
Chassis ID: 16CBZ
Dates releasing: 2016.9~
Base price, ¥: DBA-16CBZ
Body size: 4285x1815x1495
Interior (LxWxH): ----x----x----
Wheelbase: 2535
Track f/r: 1580mm/1545mm
Full weight, kg: 1300
Body type: Coupe
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール) DSR(ドライバーステアリン&#

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: CBZ
Type: inline 4 cylinder SOHC 8-valves IC-turbo
Bore x stroke, mm: 71.0x75.6
Engine size, cc: 1197
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 105ps(77kW)/5000rpm
Max torque, Nm/rpm: 17.8kg m(175N m)/1500~4100rpm
Supercharger: IC turbo
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 5.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/60R16
Rear wheel: 215/60R16
Min turn diameter, m: 5.0

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.764	2.272	1.531	1.121	1.176	0.951	0.795	—	2.045

Available colors

black / Other blackwhite / Pure WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold
